Product Introduction:
The shell is made of aviation aluminum, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D100

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

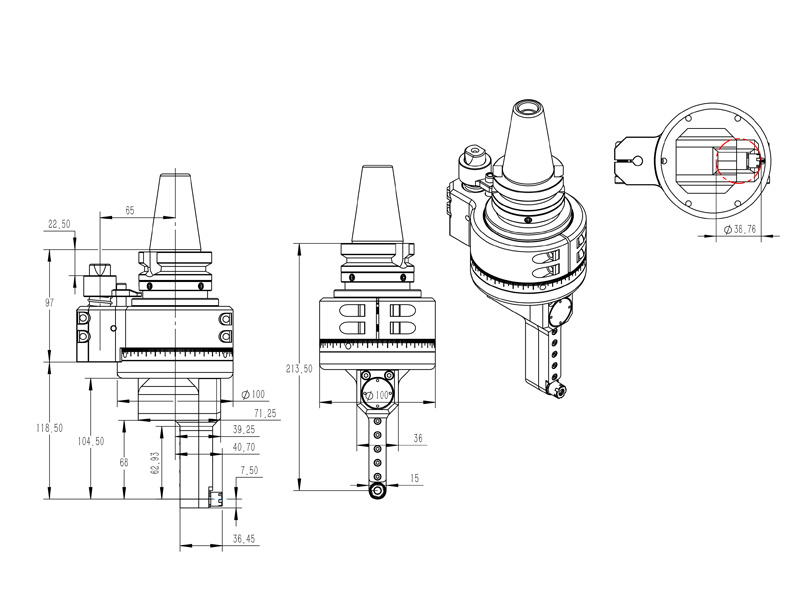

◎ Specification model: DK90-BT40-DC5M-R60 milling Angle heads


◎ Drive shank: BT40

◎ Other handles: Supported

◎ Maximum speed: 6000RPM

◎ Spindle steering: CW-CW

◎ Transmission ratio: 1:1

◎ Through diameter: D40

◎ Clamping range: D3-D5

◎ Tapping range:  Milling teeth

◎ Maximum torque: 5.6 Nm

◎ Milling head weight: 4.68kg

◎ Inventory: standing stock

◎ Non-standard customization: Support
