Products are widely used in gantry milling machine, vertical milling
machine, CNC gantry milling machine. Suitable for shipbuilding,
metallurgy, petrochemical, mining machinery, power energy, construction
machinery, heavy machinery and other large and heavy processing fields.

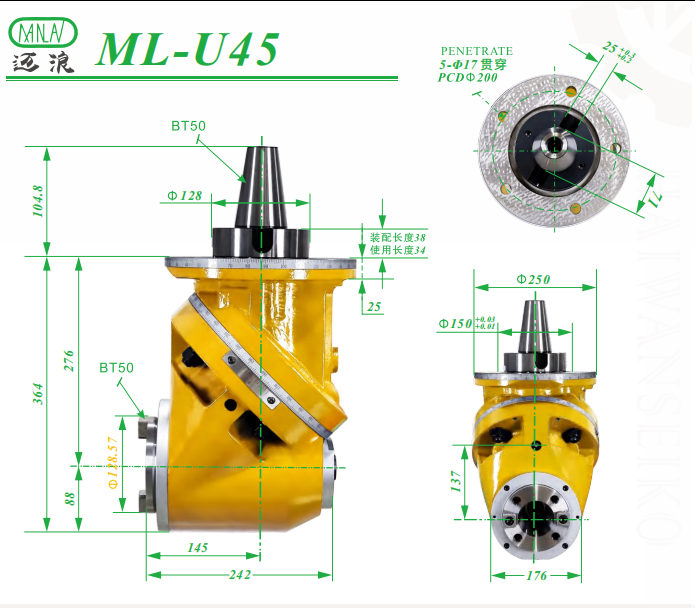

◎ Specification: ML-U45
◎Cono Shank: BT50
◎ Output Shank: BT50
◎ Max.RPM: 2000 rpm
◎ Spindle steering: CW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D200
◎ Clamping range: D128.5
◎ Peak torque: 1000 Nm
◎ Milling head weight: 85 kg
◎ Inventory: standing stock
◎ Non-standard customization: Supported
