Product Introduction:

1. The shell adopts QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and other characteristics. The minimum allowed pass Phi D110mm
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter

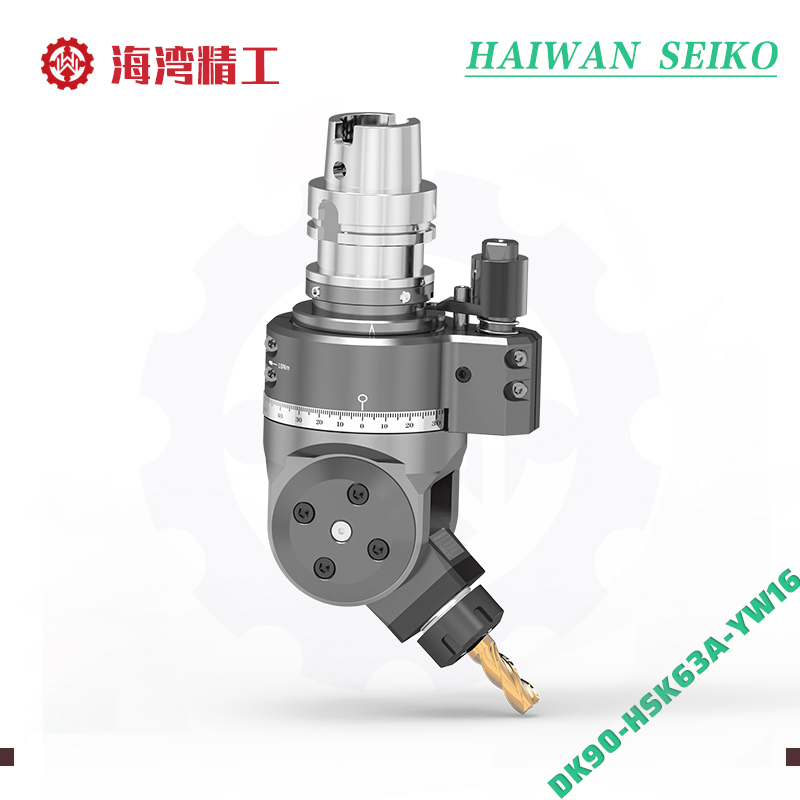

Specification Model: DK90-HSK63A-YW16

◎ Cono shank: HSK63A

◎ Other Cono Shank: Can Be Used

Peak speed: 6000RPM

Spindle steering: CW-CCW

Transmission ratio: 1:1

Through diameter: D110

Clamping range: D1-D16

Tapping range :M6-M14

Peak torque :46.Nm

Milling head weight: 6.80kg

Swing head range: ±90°

Inventory: standing stock

Non-standard customization: Supported
