Product Introduction:

1. The shell adopts 40Cr, through aging treatment, precision machining, with high rigidity, high precision, long life and other characteristics. The minimum allowed pass Phi D52mm
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter

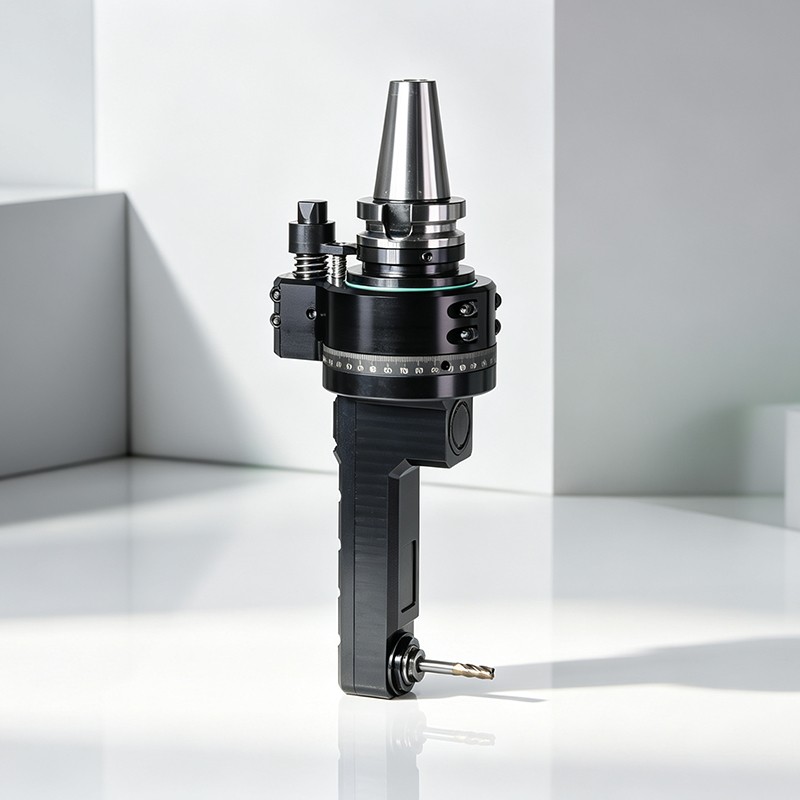

Specification Model: DK90-BT40-PER16-127

◎ Cono shank: BT40

◎ Other Cono Shank: Can Be Used

Peak speed: 6000RPM

Spindle steering: CW-CW

Transmission ratio: 1:1

Through diameter: D52

Clamping range: D4-D10

Tapping range :M5-M8

Peak torque :23.Nm

Milling head weight: 6 kg

Inventory: standing stock

Non-standard customization: Supported
