Product Introduction:

The shell is made of QT500-7, which undergoes aging treatment and is precisely processed into shape. It features high rigidity, high precision and long service life. Allow passage through фD190
2. The main drive shaft is made of special alloy materials, processed through strict heat treatment techniques, and finally precisely ground into shape to achieve high stability in transmission.
3. All gear bearings are imported in their original form, ensuring high torque and low noise during transmission.
4. The input and output forms are diverse and flexible, not limited to BT or ER interfaces, which can meet the needs of various precision processing equipment and be used in multiple processes such as milling, drilling, tapping, and grinding.

It offers you an additional option for the processing methods of your machine tool

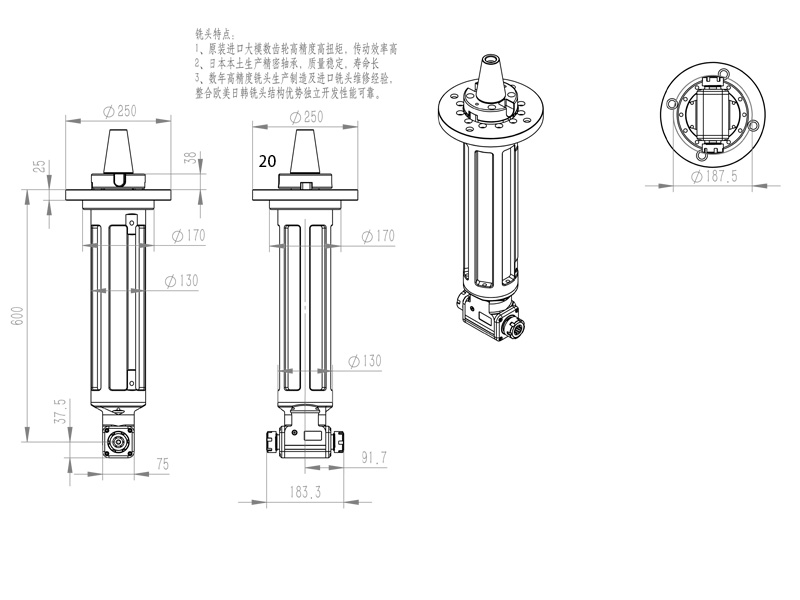

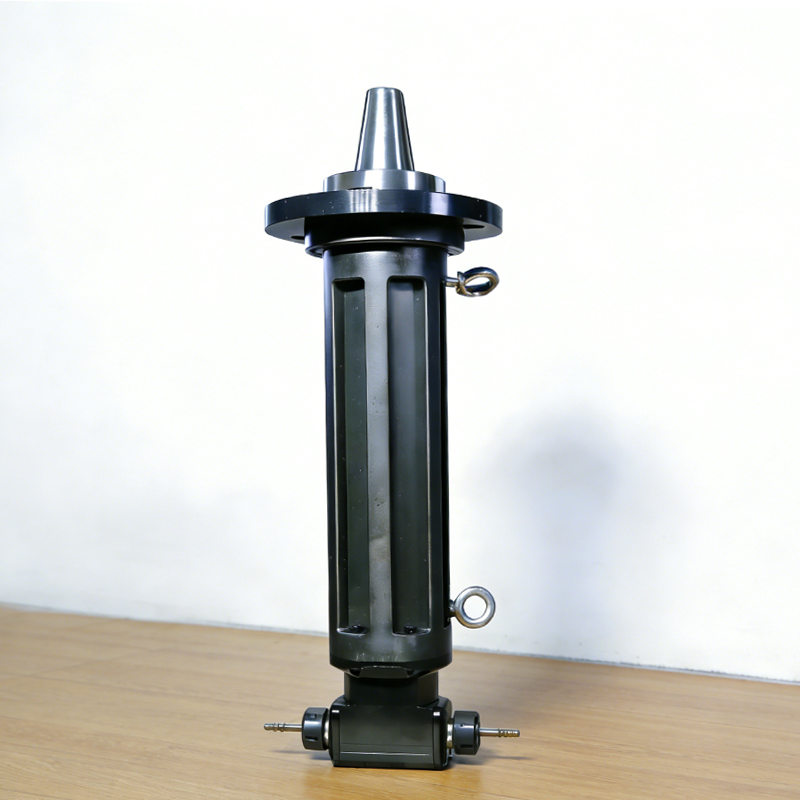

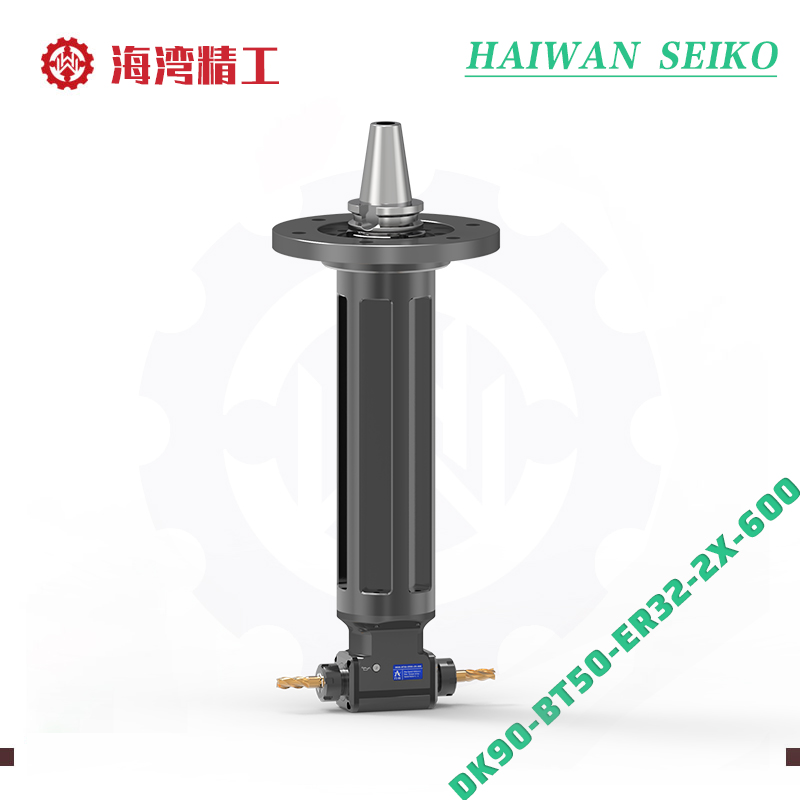

◎ Specification and Model: DK90-BT50-ER32-2X-600 Angle heads

Cono Shank: BT50

Other Cono Shank: Can Be Used

Max.RPM:  4000 rpm

◎ Spindle rotation direction: ER collet end   CW-CW / FMB22 CCW-CW

◎ Transmission ratio: 1:1

◎ Passing diameter: D190

◎ Clamping range: D1-D20

◎ Range of attack: M6-M16

Peak torque: 65. Nm

◎ Milling head weight: 44.818 kg

◎ Inventory status: stock

◎ Non-standard customization: Supported
