Product Introduction:
The shell is made of 40Cr, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D51

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter

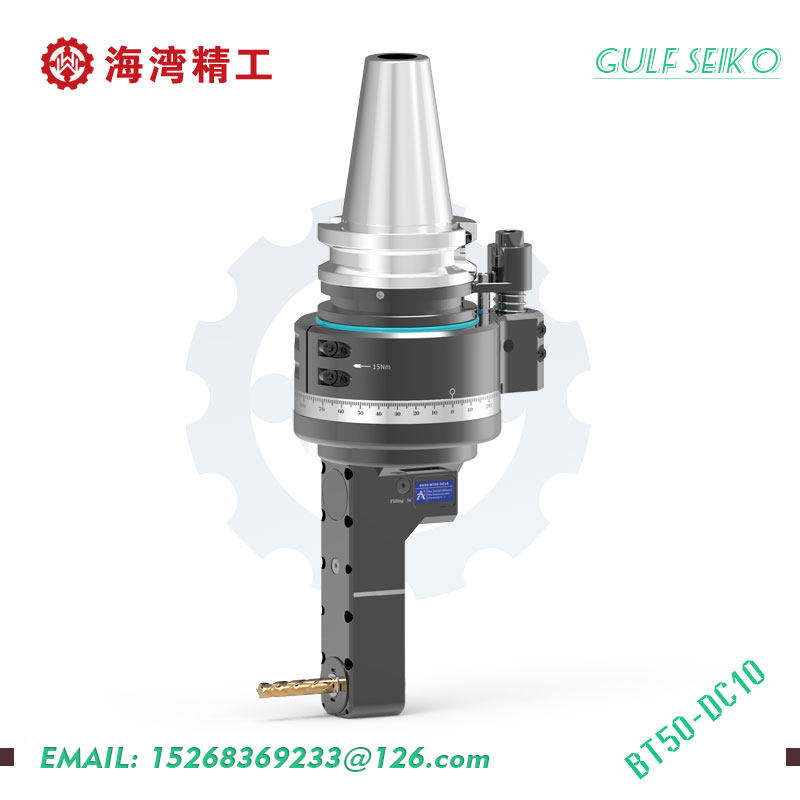

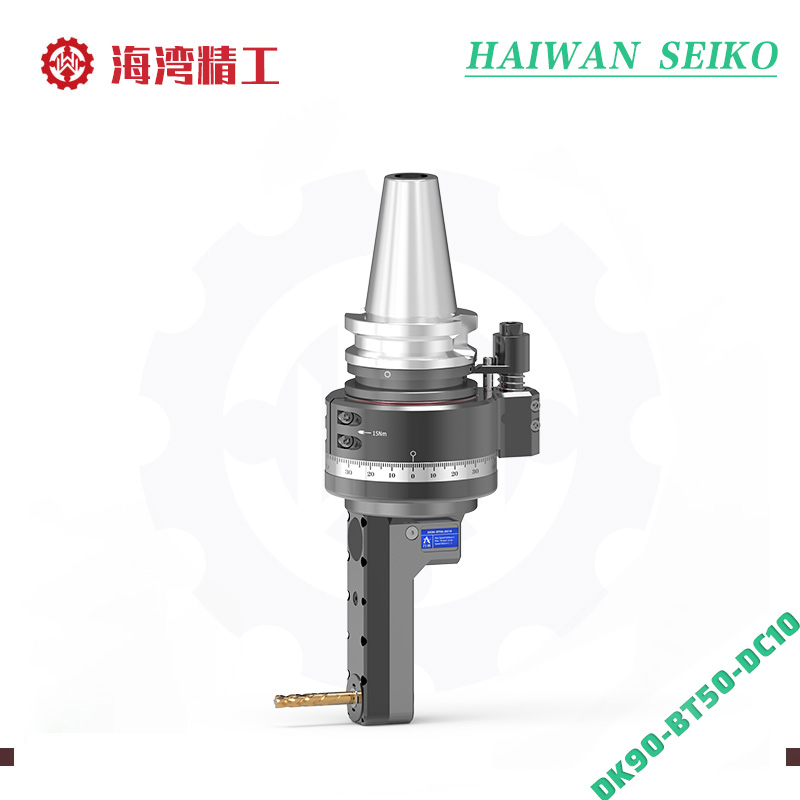

Specification Model: DK90-BT50-DC10

Drive shank: BT50

Other handles: Supported

Maximum speed: 6000RPM

Spindle steering: CW-CW

Transmission ratio: 1:1

Through diameter: D51

Clamping range: D4-D10

Tapping range: M5-M10

Maximum torque: 23.Nm

Milling head weight: 12kg

Inventory: standing stock

Custom ： customizable
