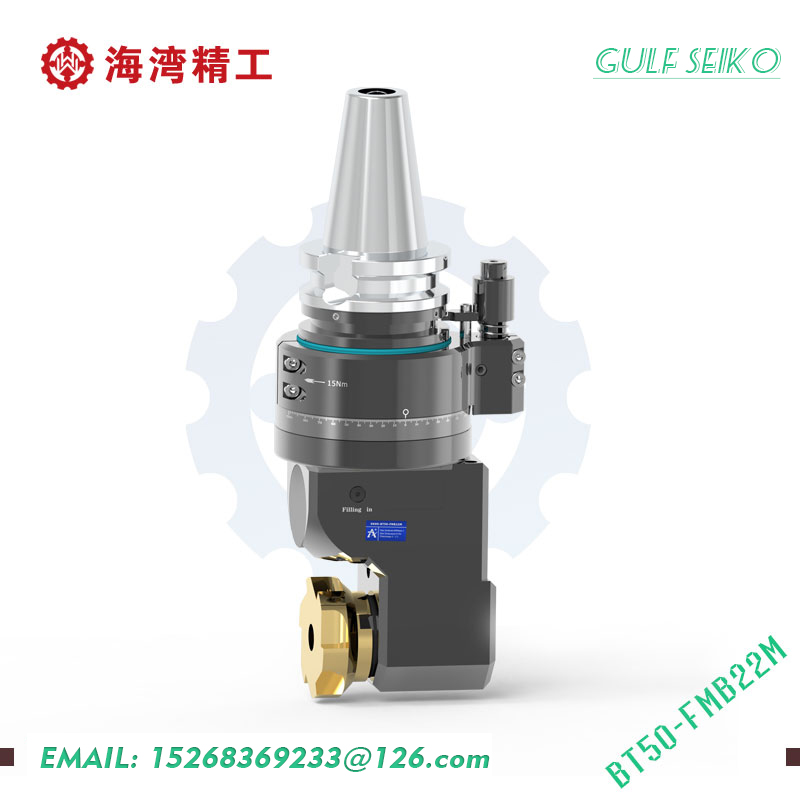

Product Introduction:
The
shell is made of aviation aluminum, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D108
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.

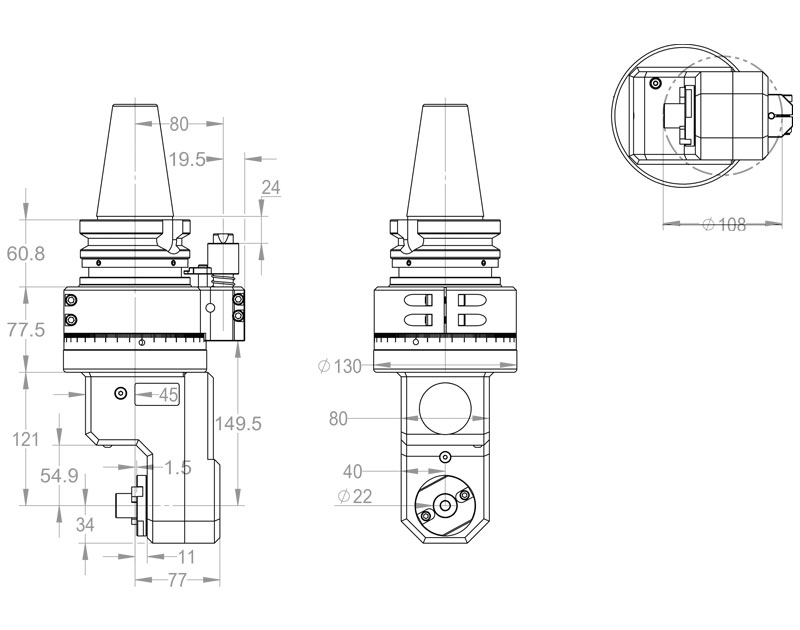

Milling head parameter
Specifications Model BT50-FMB22M
Drive shank BT50
Other shank support
Maximum speed 6000RPM
Pivot to CW-CW
Transmission ratio 1:1
By diameter D108
Clamping range FMB22
Tapping range F63
Maximum torque 65.Nm
Milling head weight 15.6 kg
Stock status Standing stock
Custom ： customizable
