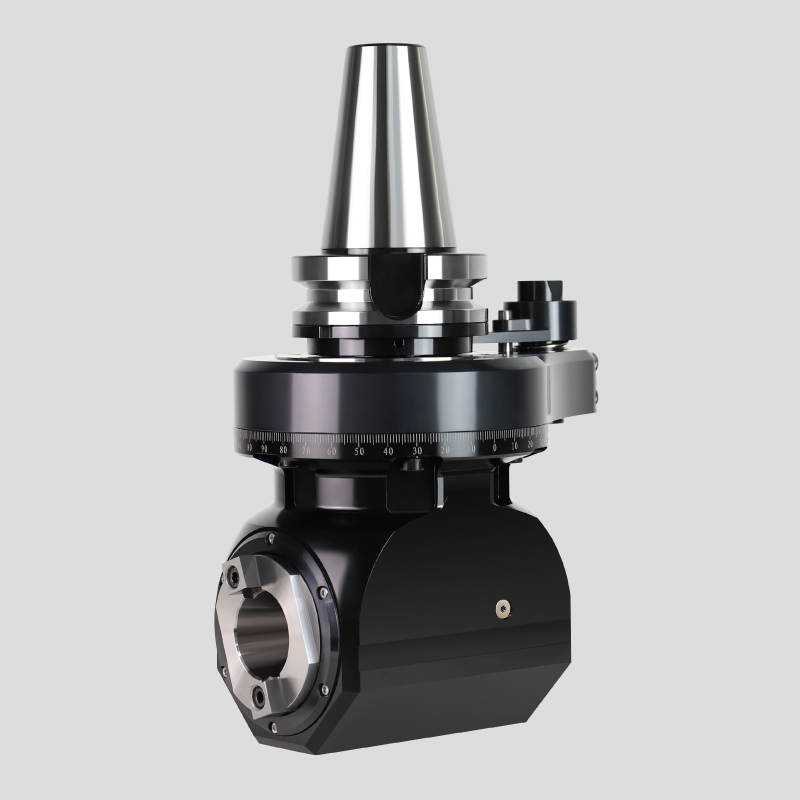

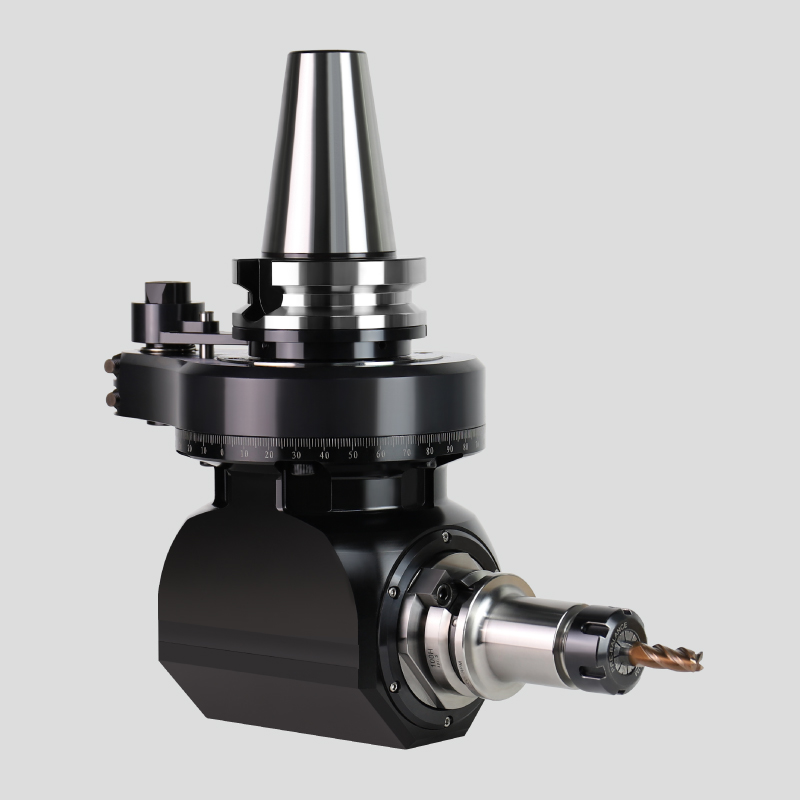

Product Introduction:
The
shell is made of aviation aluminum, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D200
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.

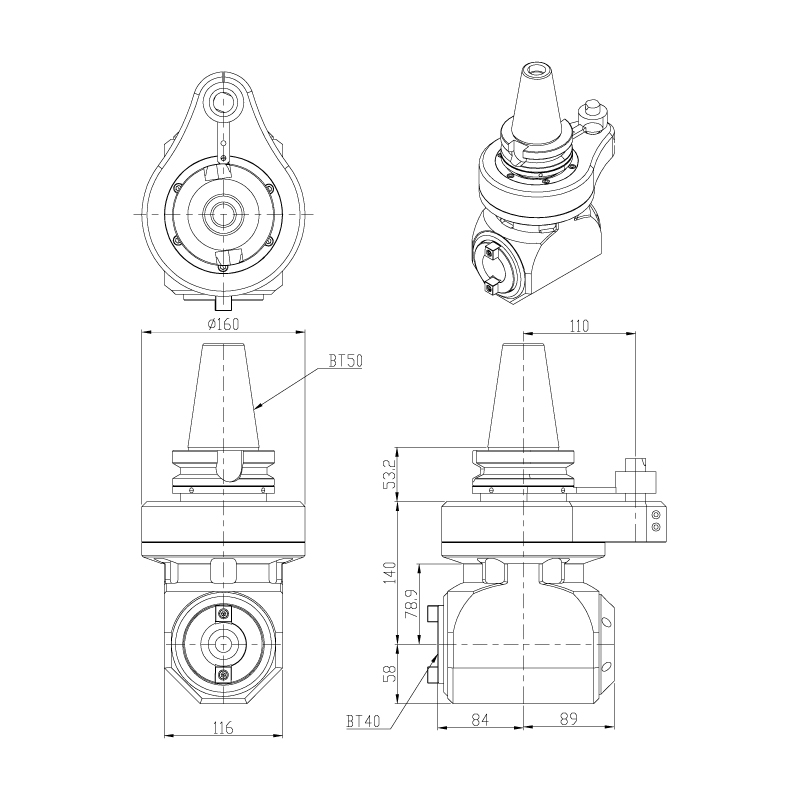

Milling head parameter

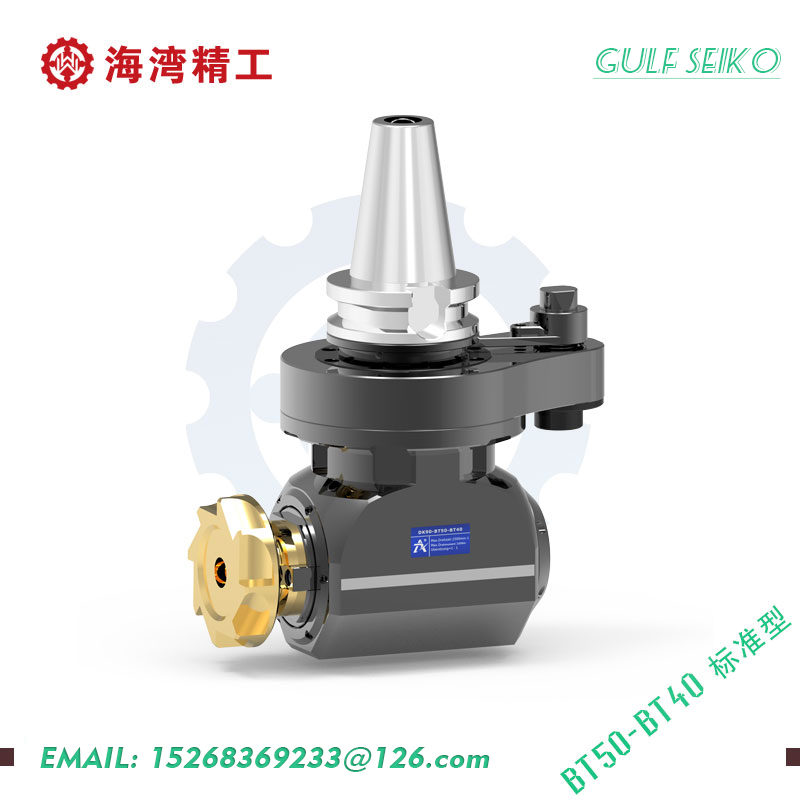

Specification Model: DK90-BT50-BT40
Drive shank: BT50
Other handles: Supported
Maximum speed: 2500RPM
Main shaft steering: CCW-CW
Transmission ratio: 1:1
Through diameter: D200
Clamping range: BT40
Tapping range: /
Maximum torque: 100.Nm
Milling head weight: 18 kg
Stock status: Out of stock
Non-standard customization: Supported
◎ Specification model: DK90-BT50-BT40
◎ Power: 22KW
◎ Maximum speed: 2000RPM
◎ Transmission ratio: 1:1
◎ Maximum torque: 130Nm
◎ Milling head weight: 28kg
◎ Inventory: standing stock
◎ Non-standard customization: Support
