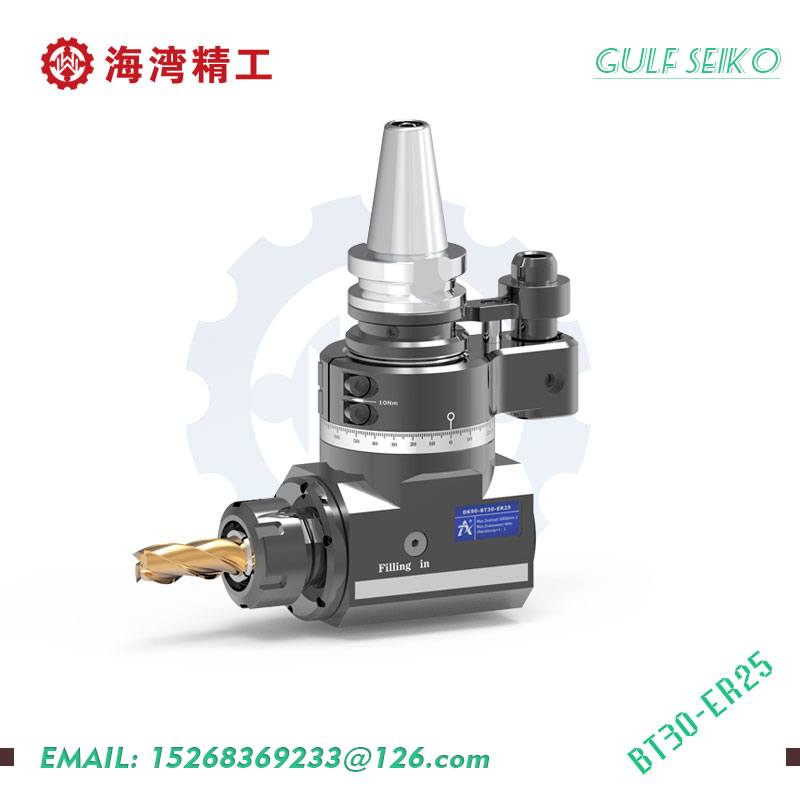

Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D120
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter
Specification Model: DK90-BT30-ER25
Drive shank: BT30
Other handles: Supported
Maximum speed: 6800RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Through diameter: D120
Clamping range: D1-D16
Tapping range: M6-M14
Maximum torque: 46.Nm
Milling head weight: 2.8kg
Inventory: standing stock
Custom ： customizable
