Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D40
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

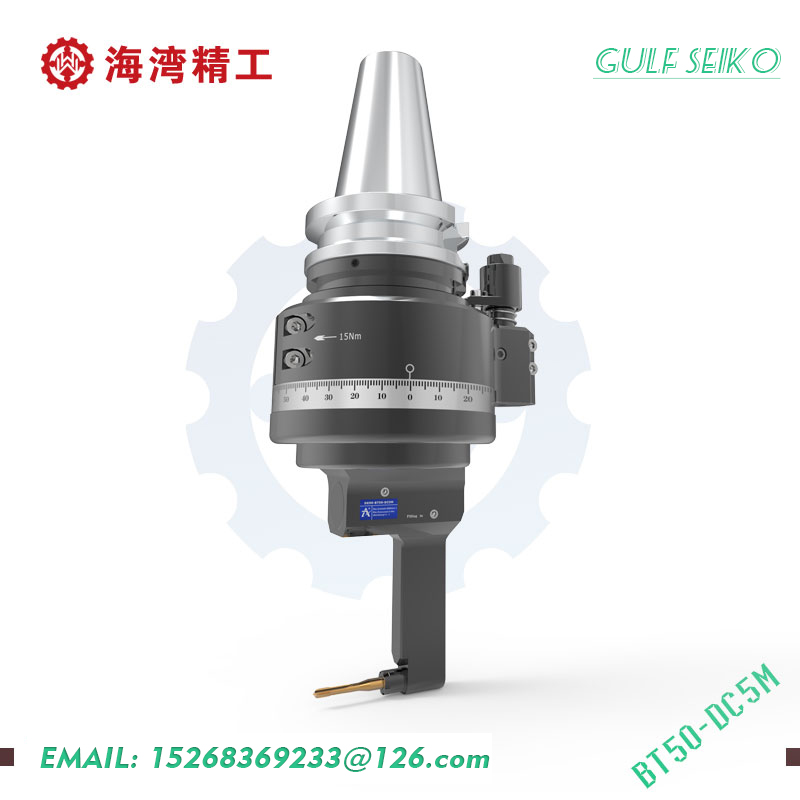

◎ Specification model: DK90-BT50-DC5M
◎ Drive shank: BT50
◎ Other handles: Supported
◎ Maximum speed: 6000RPM
◎ Spindle steering: CW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D40
◎ Clamping range: D1-D5
◎ Tapping range: M3-M5
◎ Maximum torque: 5.6Nm
◎ Milling head weight: 11.372kg
◎ Inventory: standing stock
◎ Non-standard customization: Support
