Product Introduction:
The shell is made of aviation aluminum, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D200
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.
Milling head parameter

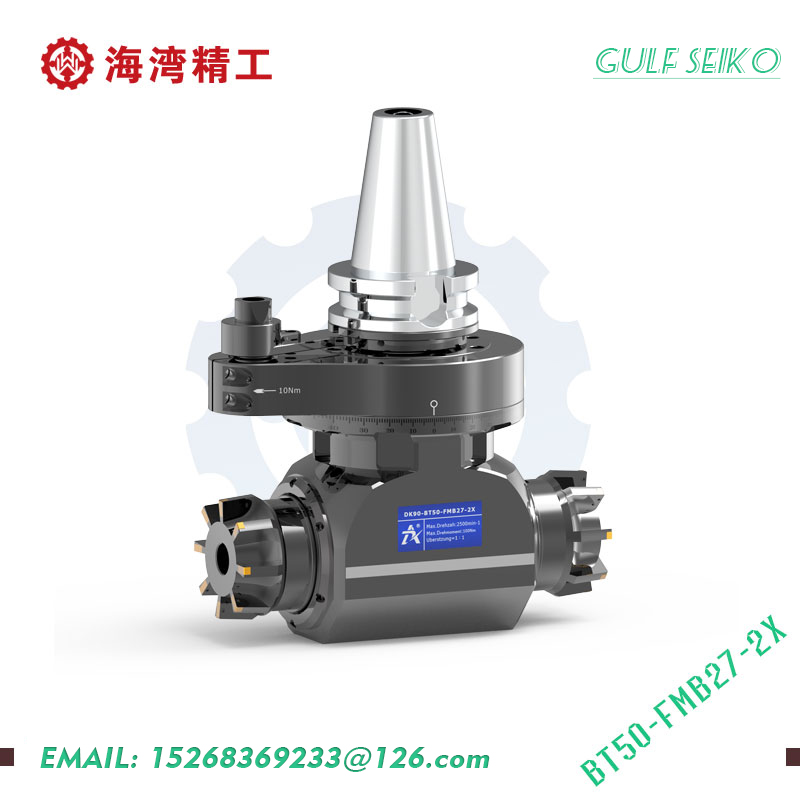

Model: DK90-BT50-FMB27-2X
Driving Shank: BT50
Shank More: Can be replaced
Max.rpm: 2500RPM
Output Rotation: CW-CW/CCW-CW
Ratio Of Transmission: 1:1
Through The Diameter: D200
Chucking Range: FMB32
Tapping: /
Torque: 100.Nm
WT: 18.5kg
Inventory: about 15 days
Custom ： customizable
