Product Introduction:

The shell is made of QT500-7, which undergoes aging treatment and is precisely processed into shape. It features high rigidity, high precision and long service life. Allow passage through фD150
2. The main drive shaft is made of special alloy materials, processed through strict heat treatment techniques, and finally precisely ground into shape to achieve high stability in transmission.
3. All gear bearings are imported in their original form, ensuring high torque and low noise during transmission.
4. The input and output forms are diverse and flexible, not limited to BT or ER interfaces, which can meet the needs of various precision processing equipment and be used in multiple processes such as milling, drilling, tapping, and grinding.

It offers you an additional option for the processing methods of your machine tool

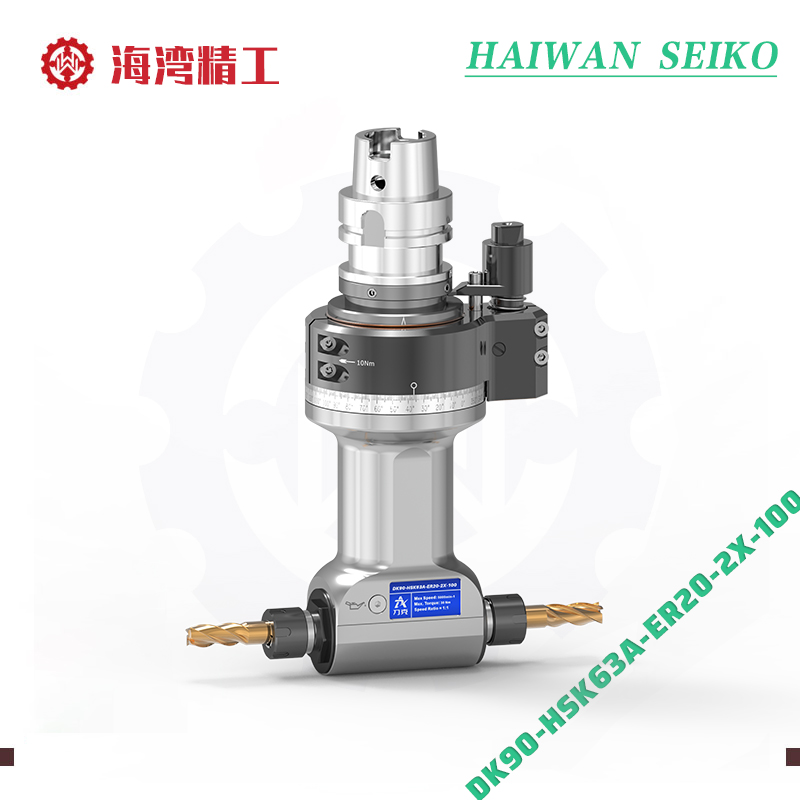

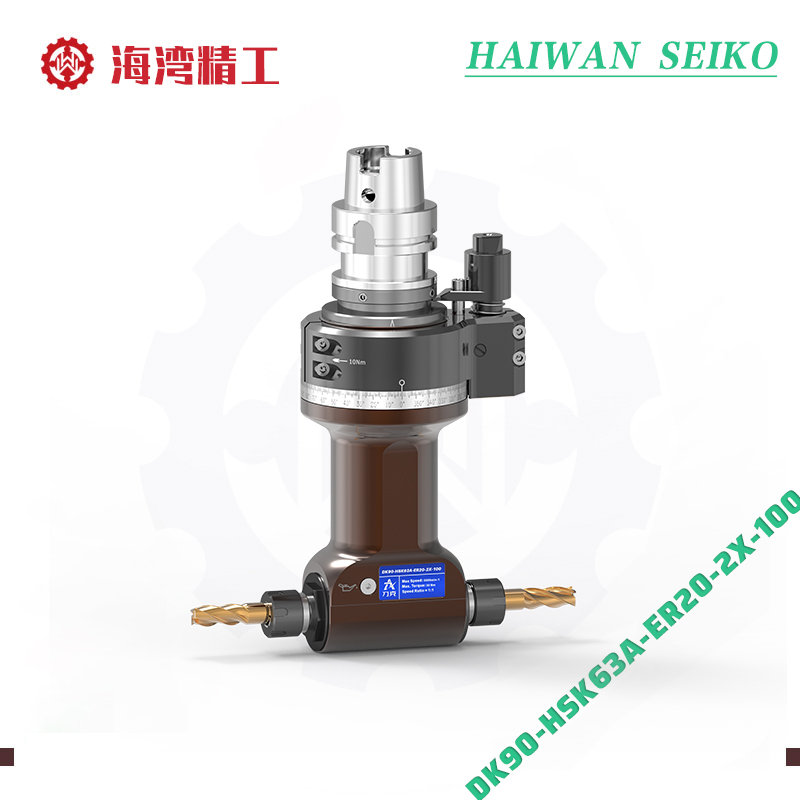

◎ Specification and Model: DK90-HSK63A-ER20-50 Angle heads

Cono Shank: HSK63A

Other Cono Shank: Can Be Used

Max.RPM:  5000 rpm

◎ Spindle rotation direction: CW-CW/CCW-CW

◎ Transmission ratio: 1:1

◎ Passing diameter: D150

◎ Clamping range: D1-D13

◎ Range of attack: M5-M10

Peak torque: 30. Nm

◎ Milling head weight: 6.78 kg

◎ Inventory status: Stock

◎ Non-standard customization: Supported
