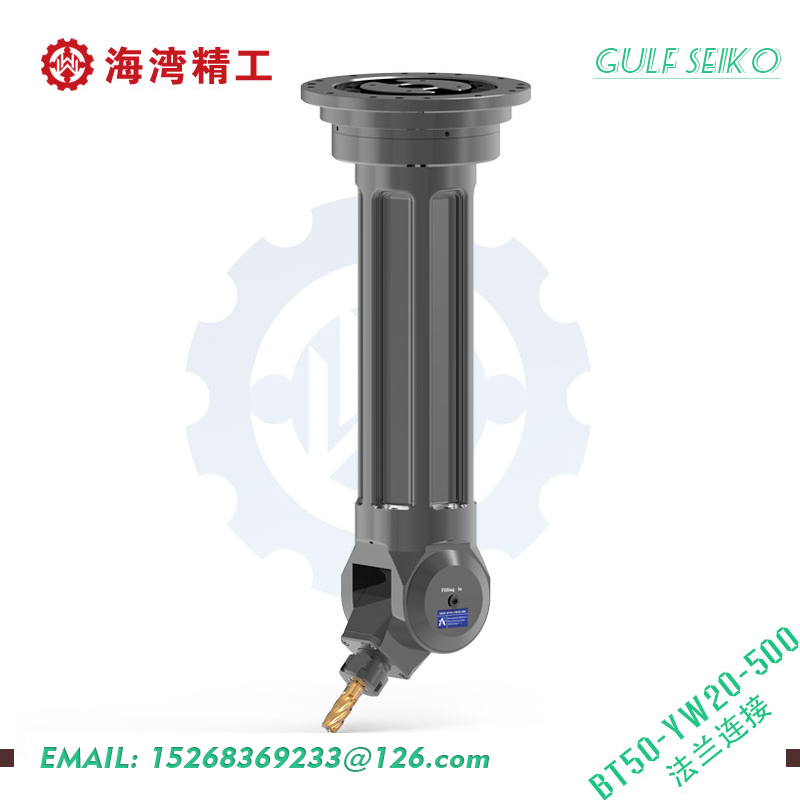

Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D155
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter
Model: DK90-BT50-YW20-500
Driving Shank: BT50
Shank More: Can be replaced
Max.rpm: 4000RPM
Output Rotation: CW-CW
Ratio Of Transmission: 1:1
Through The Diameter: D155
Chucking Range:D1-D20
Tapping:M6-M16
Torque: 65.00 Nm
WT: 35.812 kg
Inventory: Stock
Custom: Customizable
