Product Introduction:
The shell is made of QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D132

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter

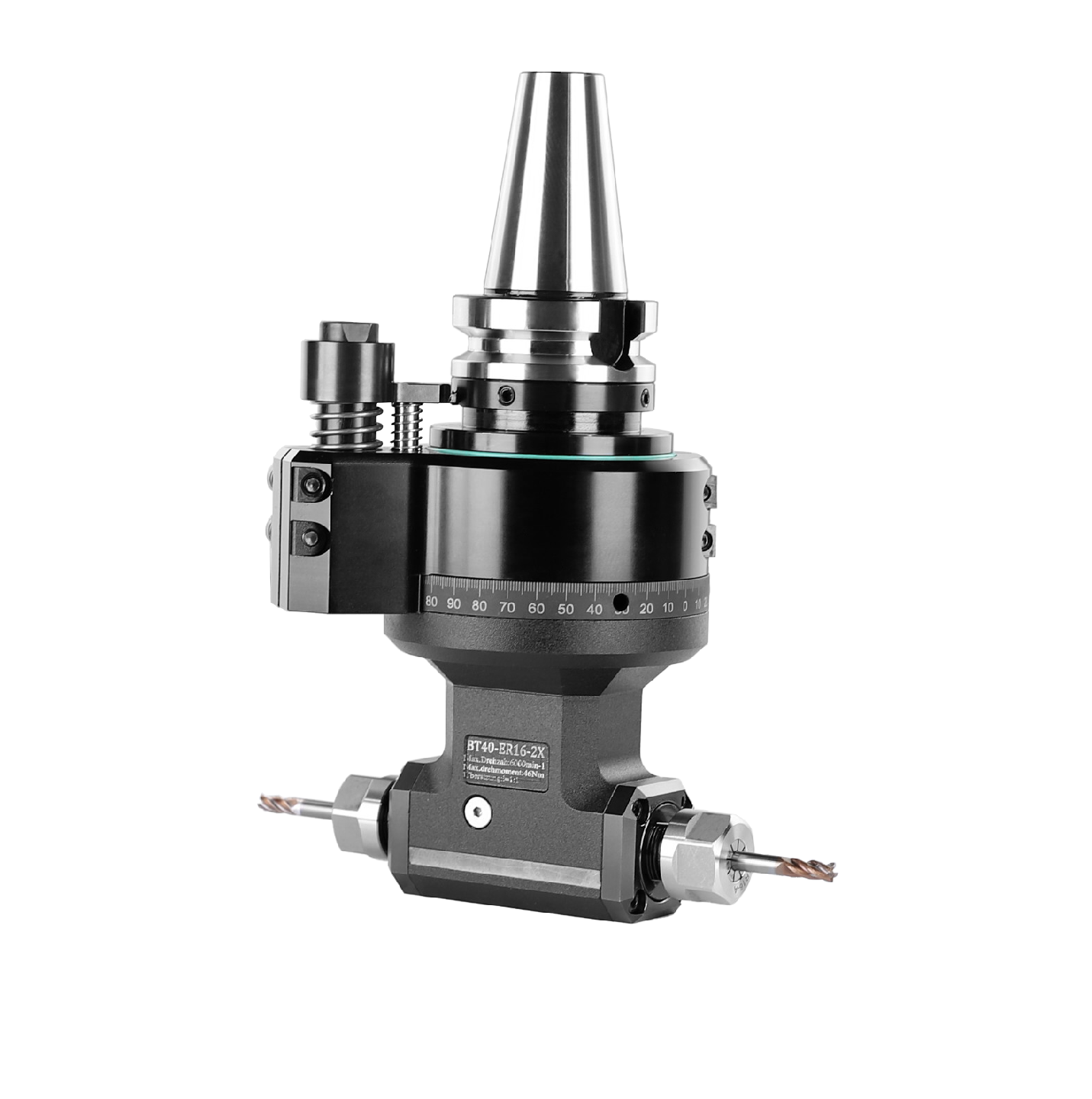

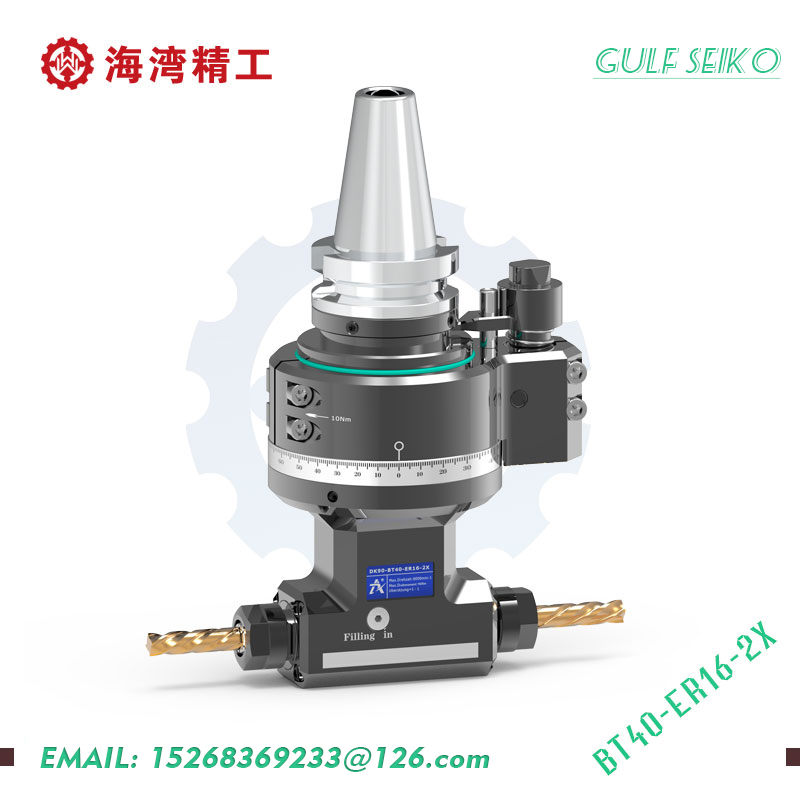

Model:  DK90-BT40-ER16-2X

◎ Cono shank: BT40/HSK63A/SK40

◎ Other Cono Shank: Can Be Used

◎ Max.RPM: 6000 rpm

Shank More:  Can be replaced

Max.rpm: 6000RPM

Output Rotation: CW-CW

Ratio Of Transmission: 1:1

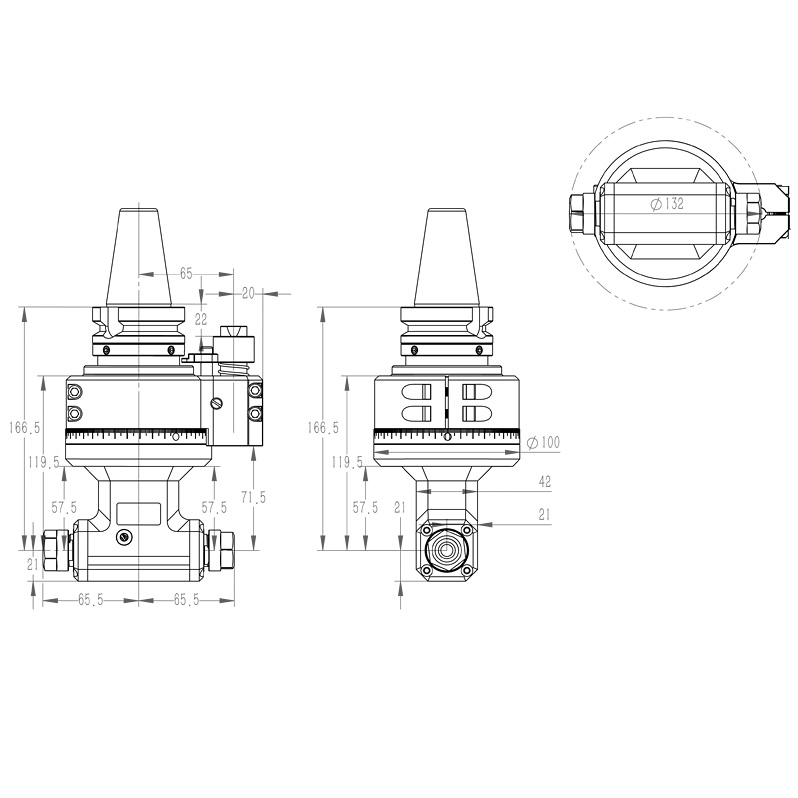

Through The Diameter: D132

Chucking Range: D1-D10

Tapping: M6-M8

Torque: 18 Nm

WT: 4.163 kg

Inventory: Stock

Custom : customizable
