Product Introduction:
The
shell is made of aviation aluminum, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D90
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

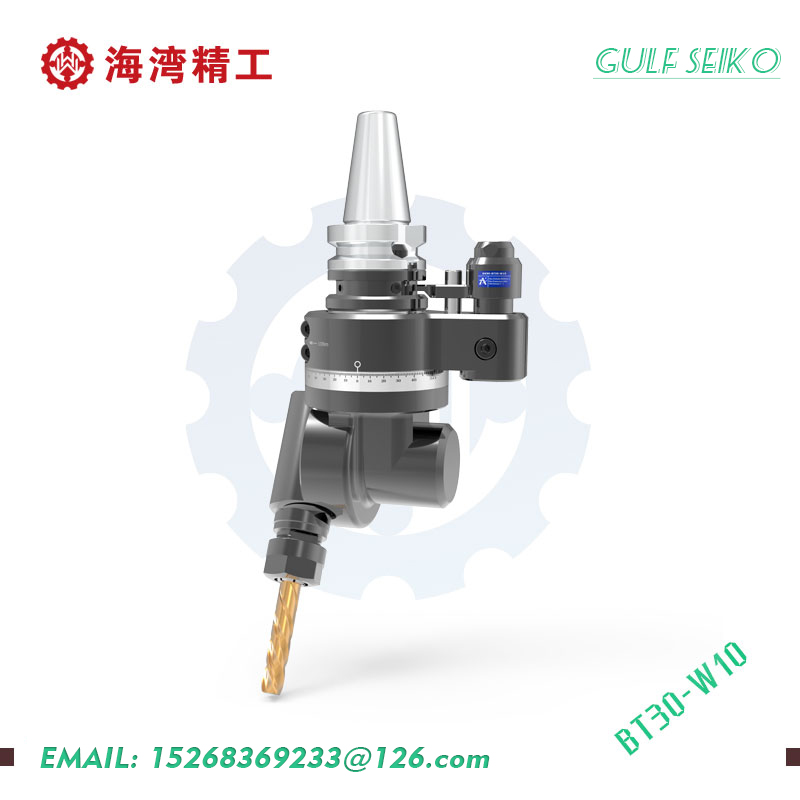

Model: DK90-BT30-W10
Driving Shank: BT30
Shank More: Can be replaced
Max.rpm: 6000RPM
Output Rotation: CW-CW
Ratio Of Transmission: 1:1
Through The Diameter: D90
Chucking Range: D3-D10
Tapping: M5-M8
Torque: 23.Nm
WT: 2.1kg
Inventory: stock
Custom ： customizable
