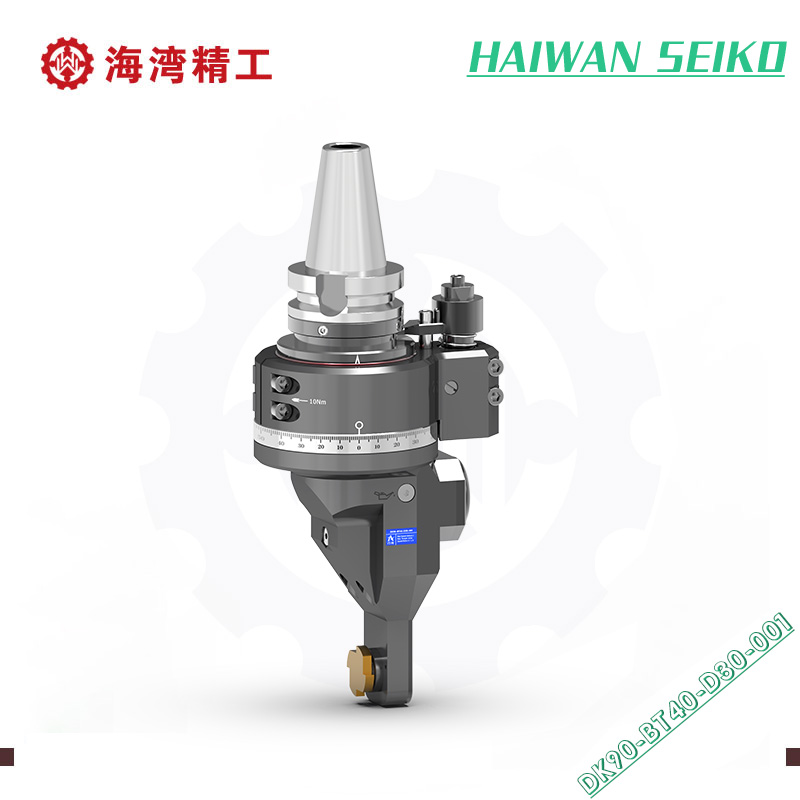

Product Introduction:
The shell is made of 40Cr, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D65

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

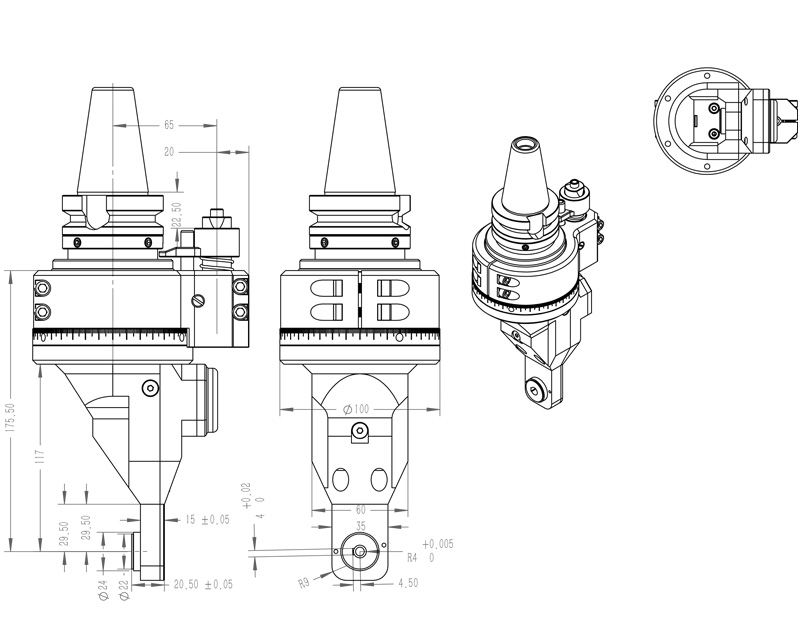

Milling head parameter

Specification Model: BT40-D30-001

Cono Shank: BT40

Other Cono Shank: Can Be Used

Max.RPM: 5000 rpm

Spindle steering: CW-CW

Transmission ratio: 1:1.5

Through diameter: D65

Clamping range: D8

Cooling method: external cooling

Maximum torque: 18.Nm

Milling head weight: 5.8kg

Inventory: Often in stock

Custom ： customizable
