Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D100
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

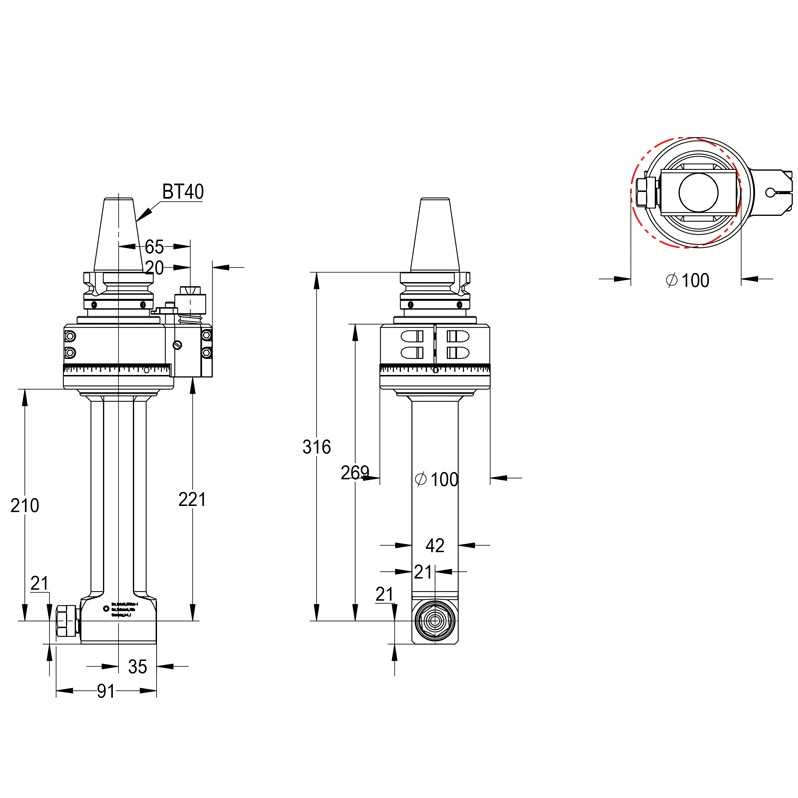

Milling head parameter

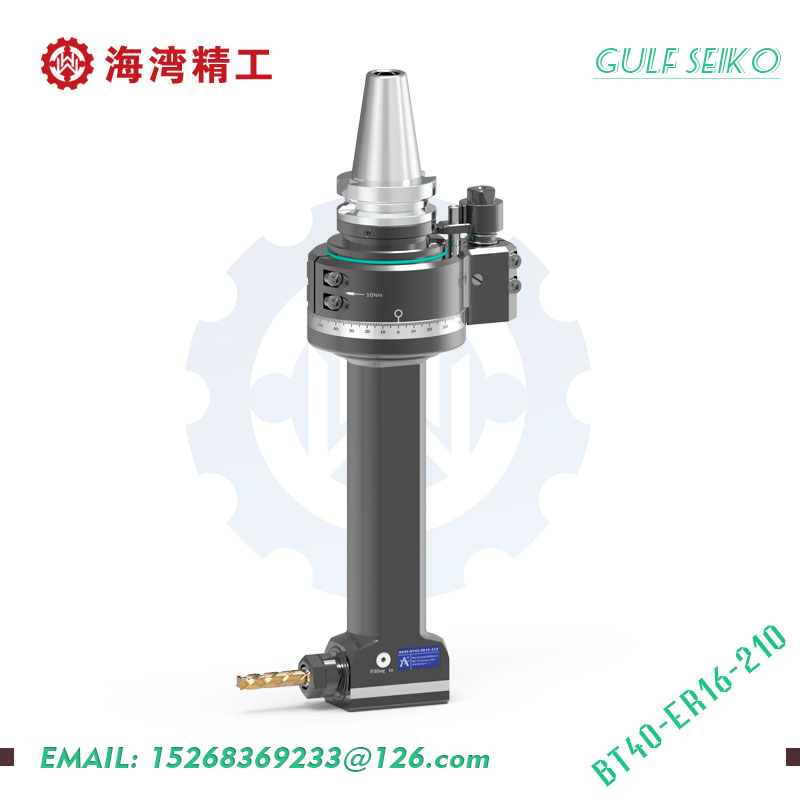

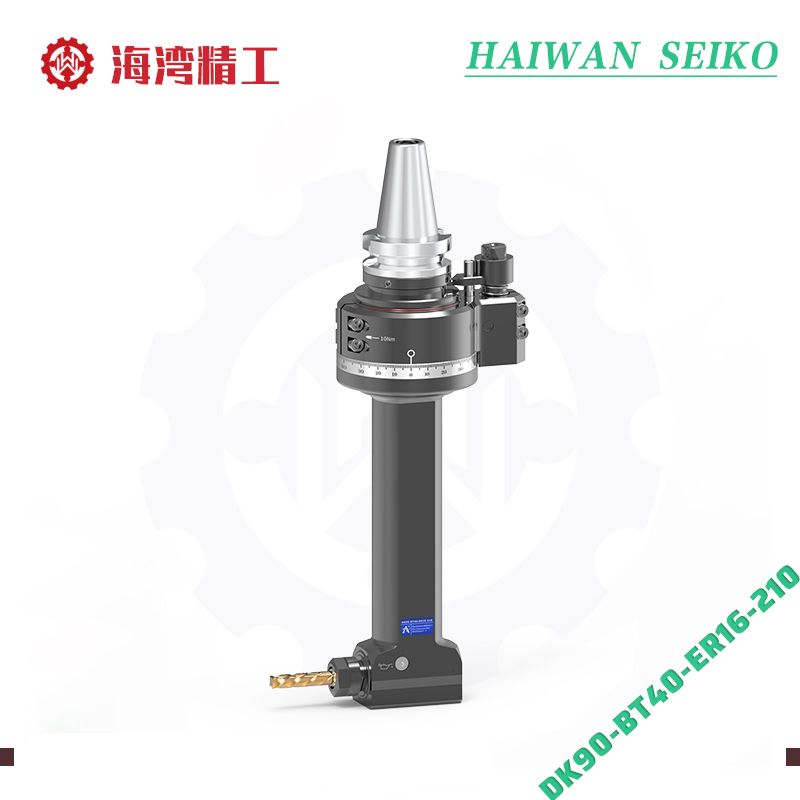

Specification Model: DK90-BT40-ER16-210
Drive shank: BT40
Other handles: Supported
Maximum speed: 8000RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Through diameter: D100
Clamping range: D1-D10
Tapping range: M5-M8
Maximum torque: 18.Nm
Milling head weight: 6.324 kg
Inventory: standing stock
Non-standard customization support
