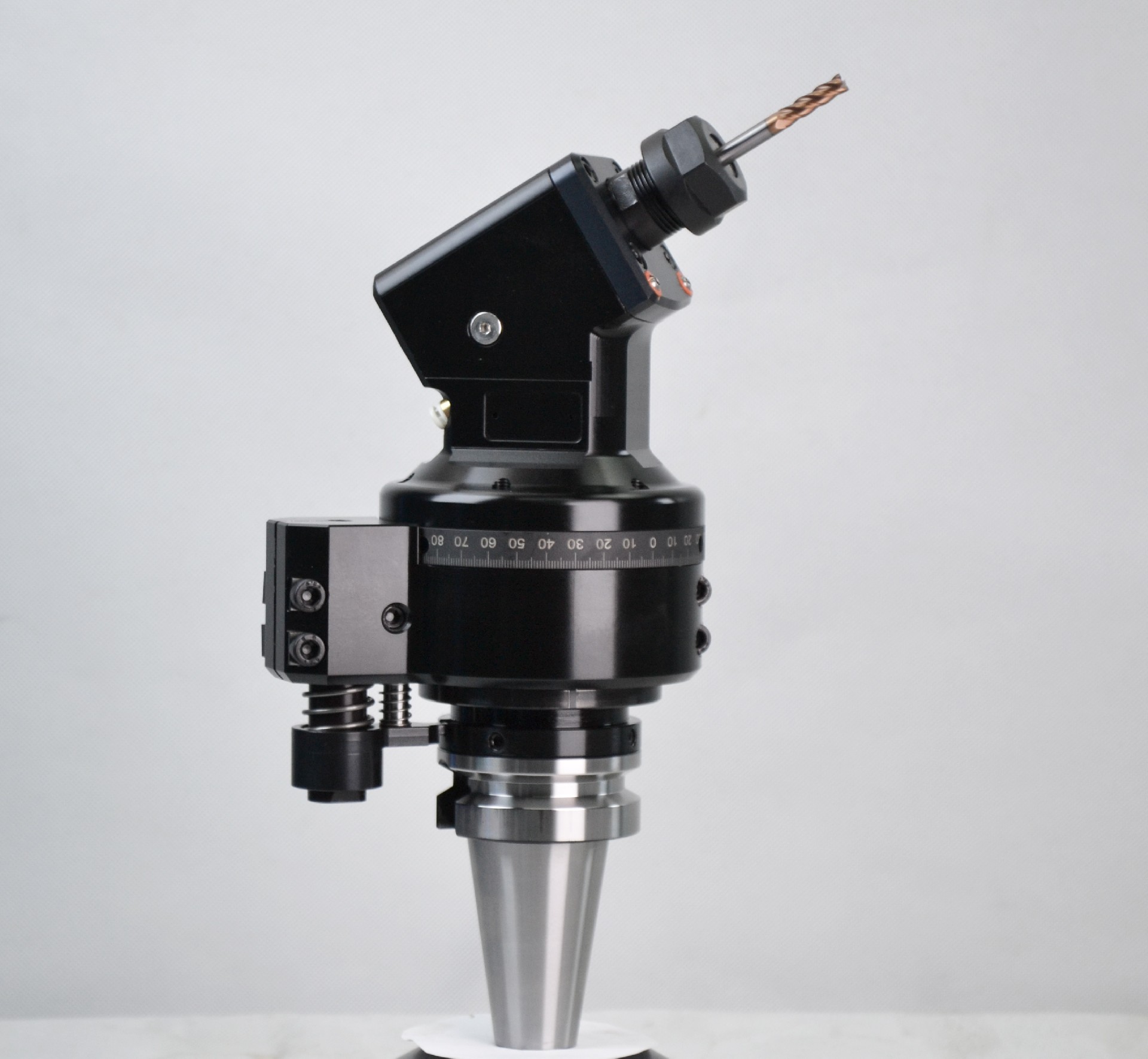

Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D130
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

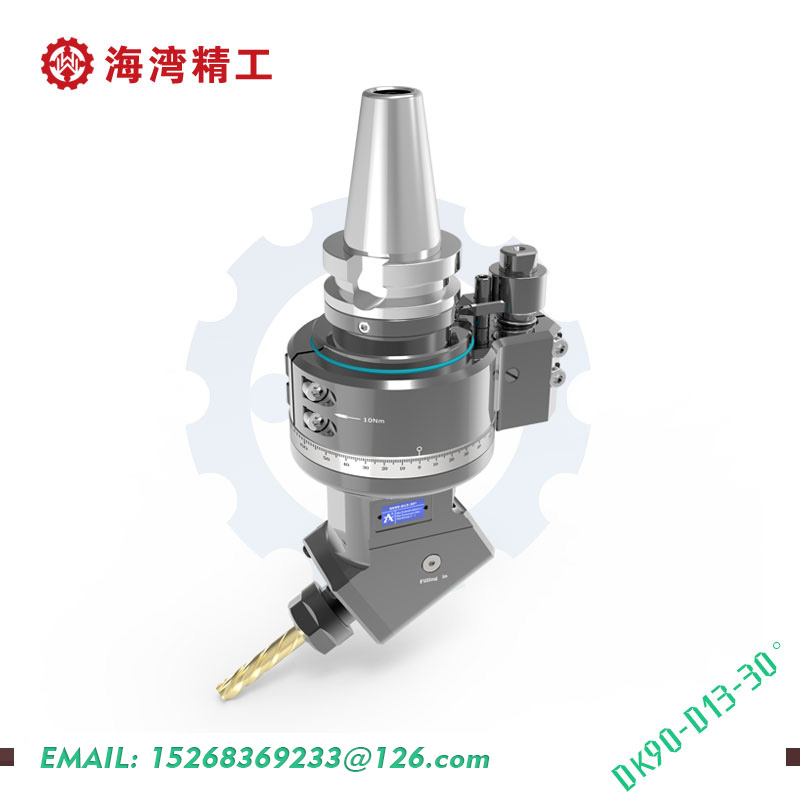

Specifications: DK90-BT40-ER16-30 ° / DK90-D13-30°
Driver shank: BT40/HSK63/NT40/CAT40
Other handles: Supported
Maximum speed: 7500RPM
Spindle steering: CCW-CW
Transmission ratio: 1:1
Through diameter: D130
Clamping range: D1-D13
Tapping range: M6-M12
Maximum torque: 35.Nm
Milling head weight: 4.951 kg
Stock status: /
Non-standard customization: Supported
