Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D100
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.
Milling head parameter

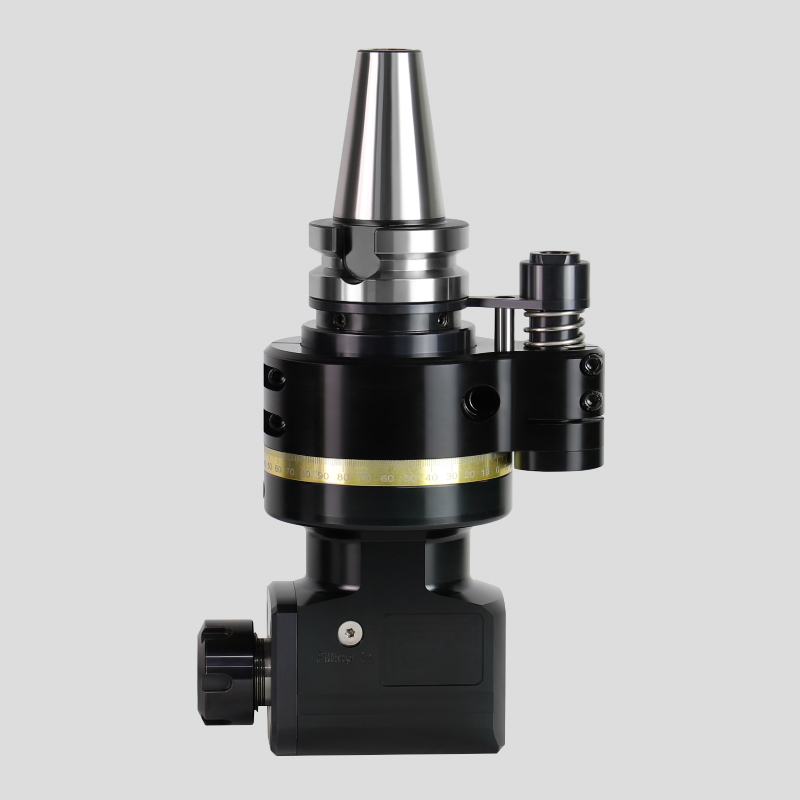

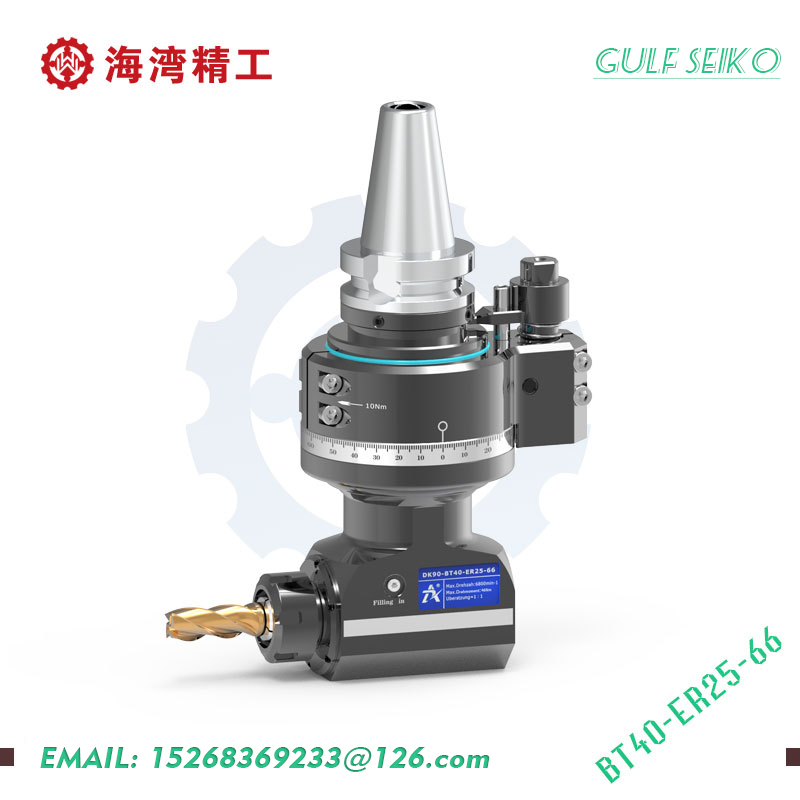

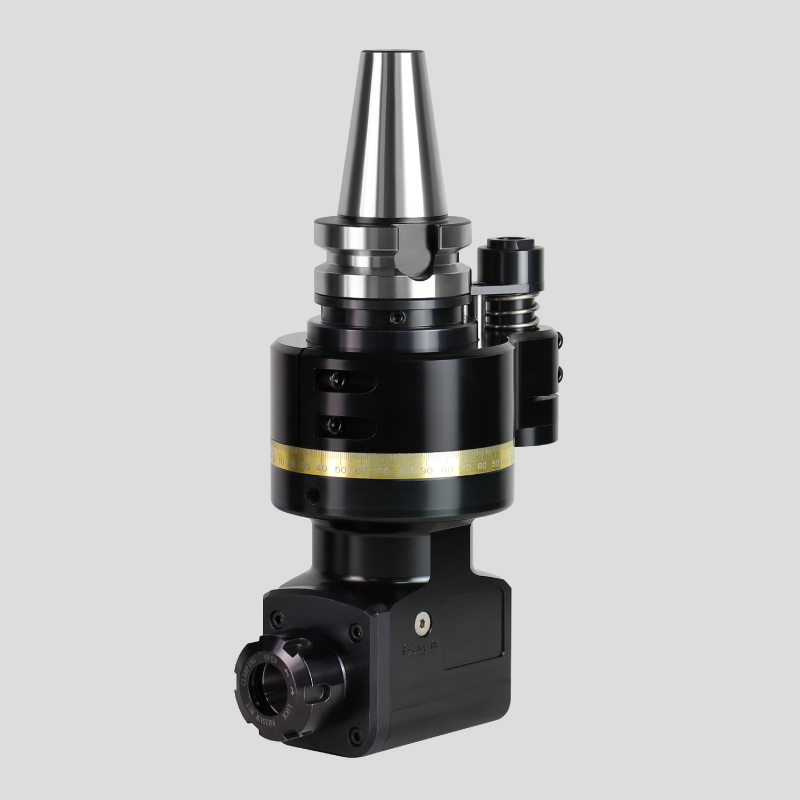

Specification Model: DK90-BT40-ER25-66
Drive shank: BT40
Other handles: Supported
Maximum speed: 6800RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Through diameter: D130
Clamping range: D1-D16
Tapping range: M6-M14
Maximum torque: 46.Nm
Milling head weight: 6.118 kg
Inventory: standing stock
Non-standard customization: Supported
