Product Introduction:
The shell is made of 40Cr, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D51

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

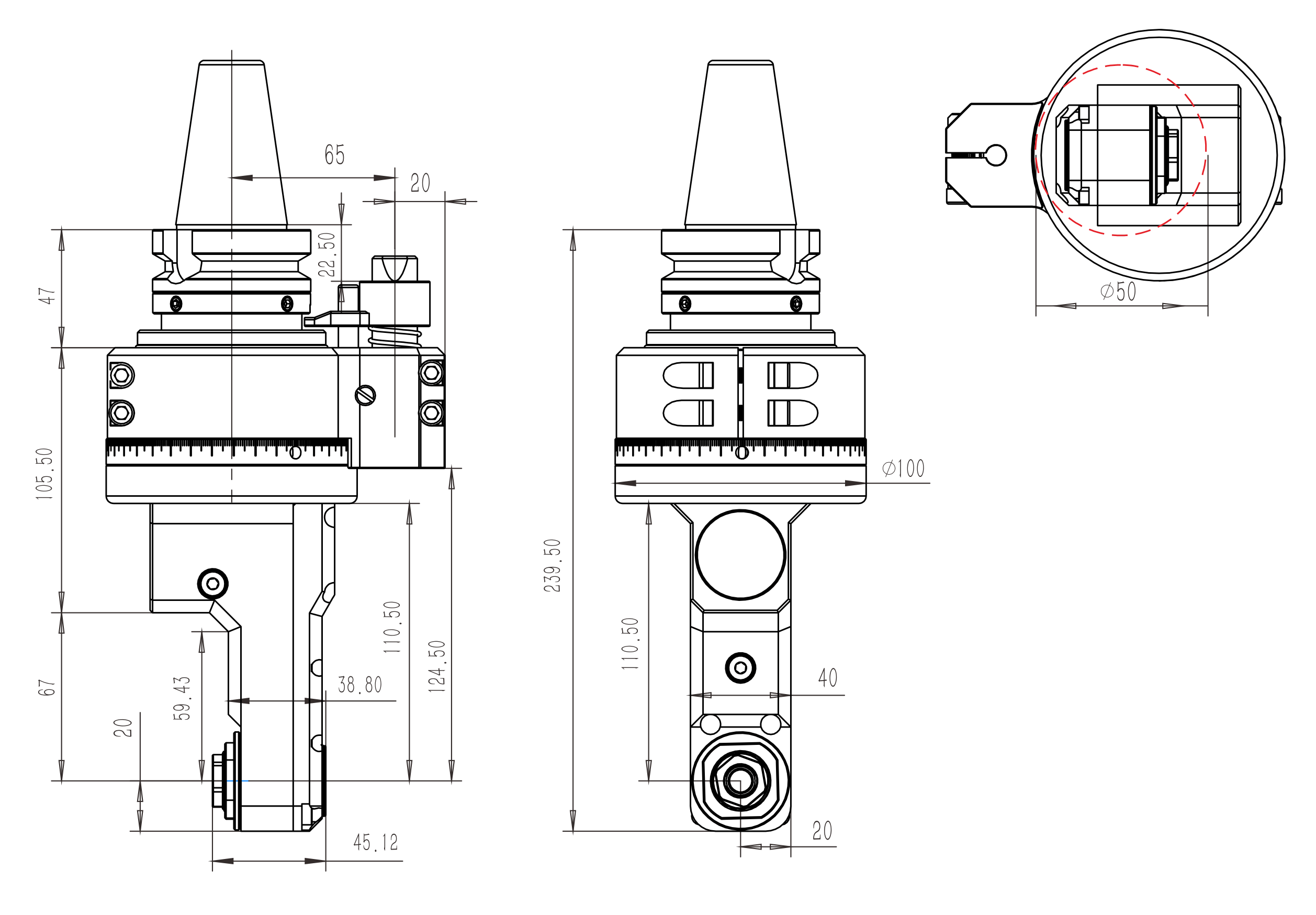

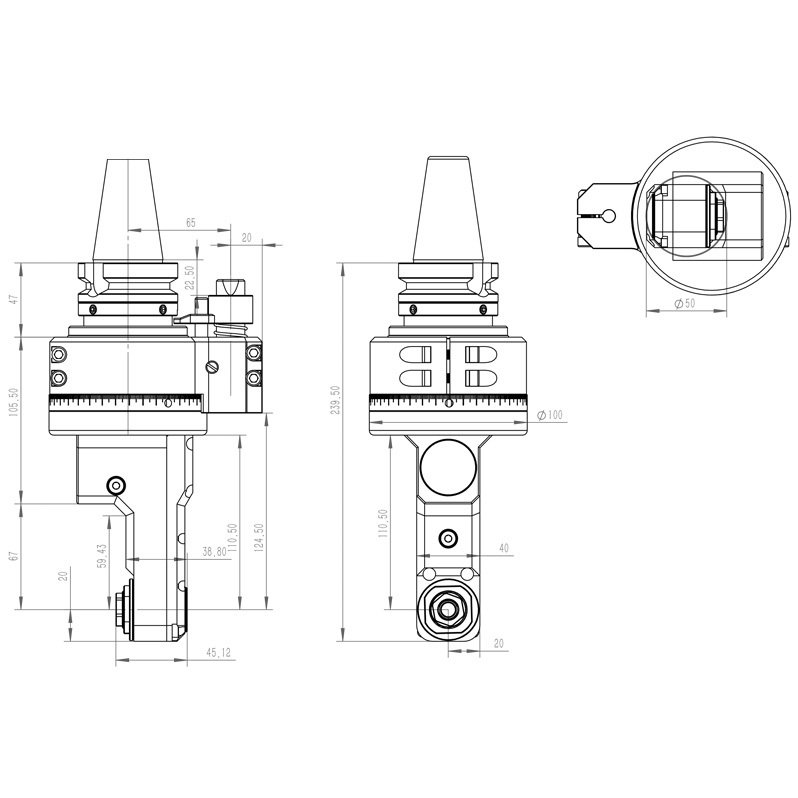

Milling head parameter

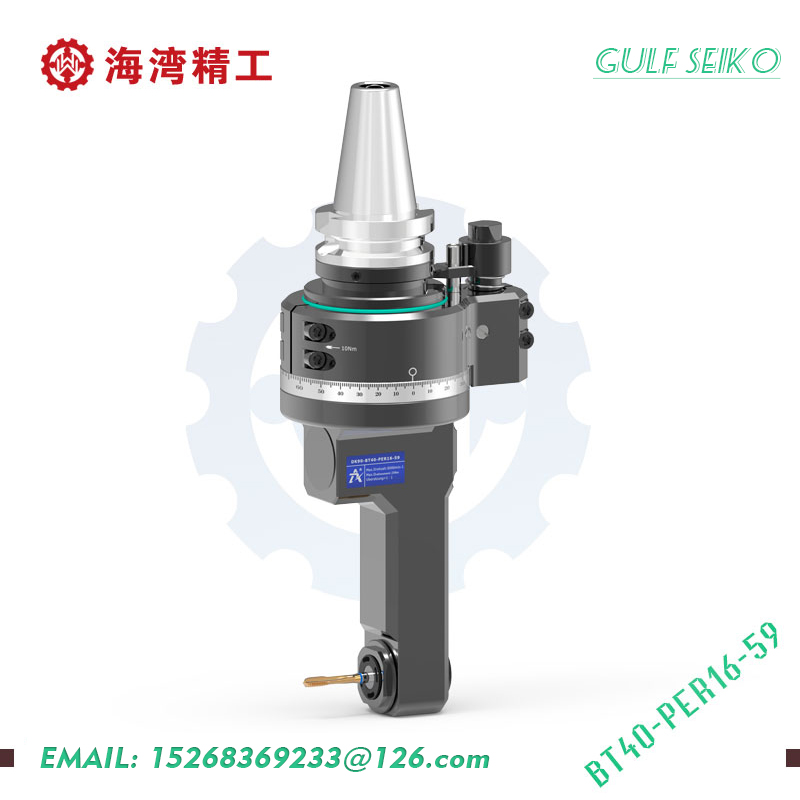

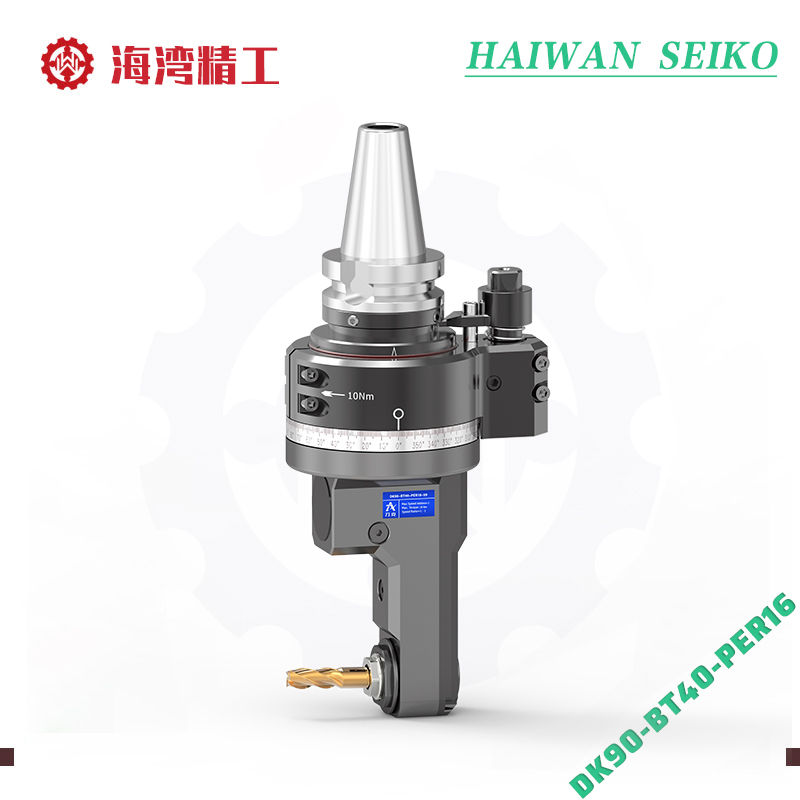

Specification Model DK90-BT40-PER16-59

Cono Shank: BT40

Other Cono Shank: Can Be Used

Max.RPM: 5000 rpm

Pivot to CW-CW

Transmission ratio 1:1

By diameter D51

Clamp range D4-D10

Tapping range M5-M10

Maximum torque 25.Nm

Milling head weight 5.3kg

Stock status Standing stock

Non-standard customization support
