Product Introduction:
The shell is made of QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D100

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

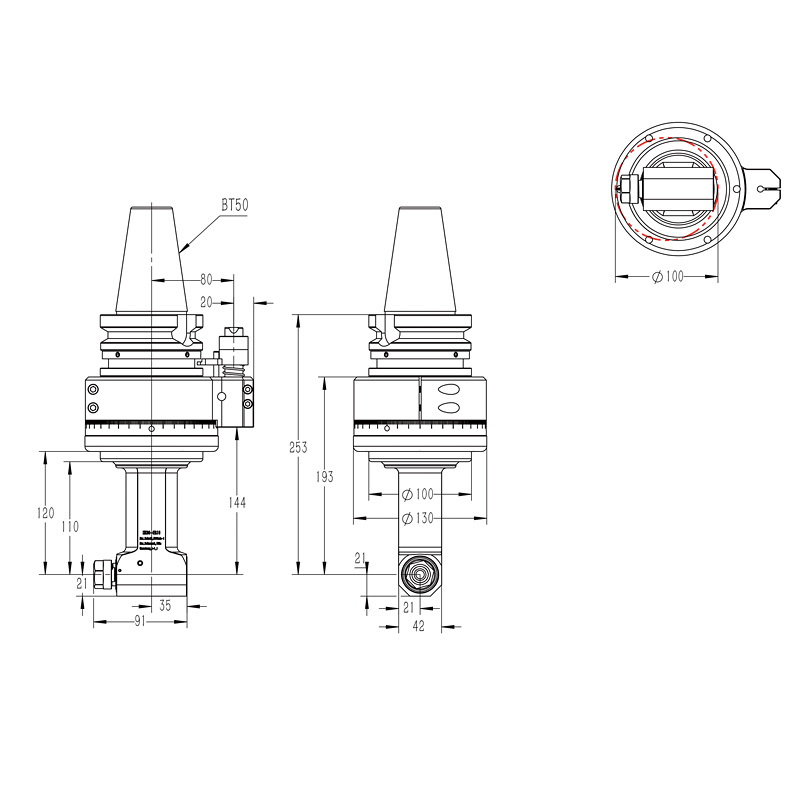

Milling head parameter

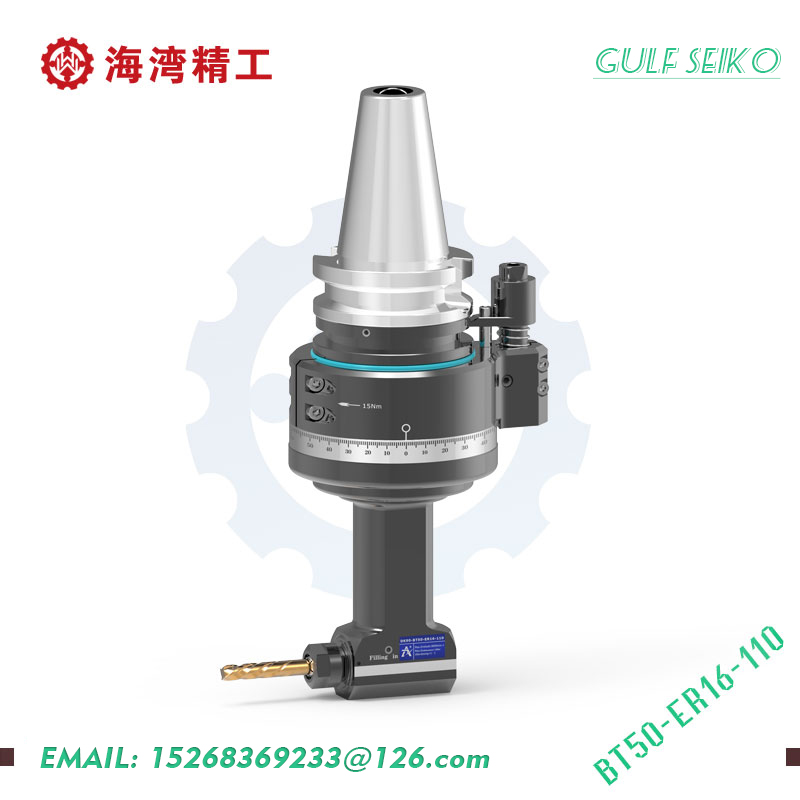

Specification Model: DK90-BT50-ER16-110

Cono Shank: BT50

Other Cono Shank: Can Be Used

Max.RPM: 6000 rpm

Pivot to CW-CW

Transmission ratio 1:1

By diameter D100

Clamp range D1-D10

Tapping range M5-M8

Maximum torque 18.Nm

Milling head weight kg

Stock status Standing stock

Non-standard customization support
