Product Introduction:
1. The shell is made of aviation
aluminum, through aging treatment, precision machining, with high
rigidity, high precision, long life and other characteristics. Allow a
minimum Phi D85 pass
2. The main drive shaft is made of special alloy
material, processed by strict heat treatment process, and finally
finely ground to achieve high transmission stability.
3. Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
4.
Input and output forms are diverse and flexible, not limited to BT or
ER interface, can meet all kinds of precision machining equipment, can
be used for milling, drilling, tapping, grinding and other processes of
processing.

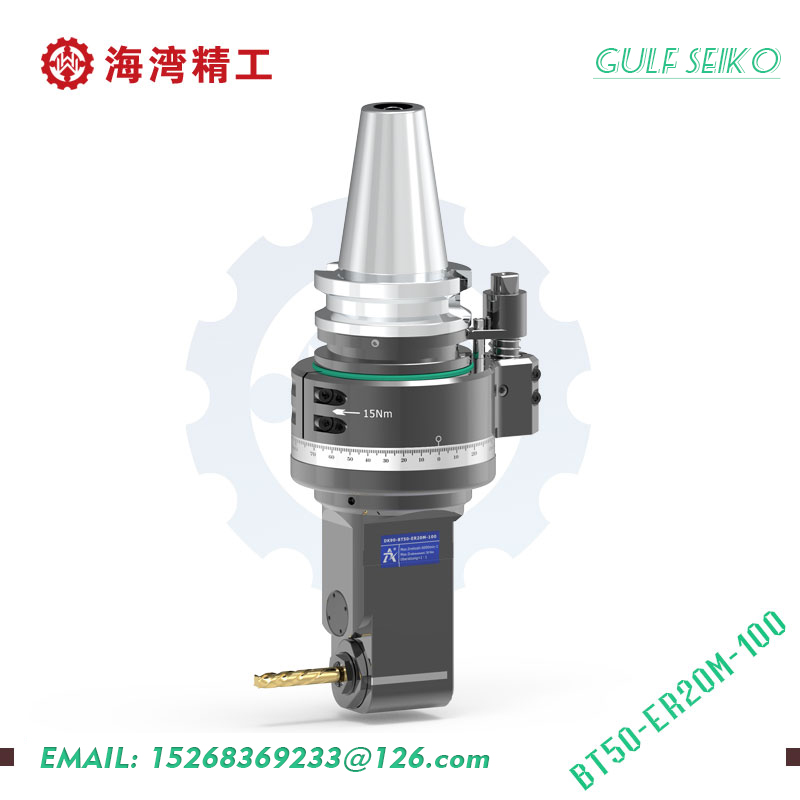

◎ Specification model: DK90-BT50-ER20M-100
◎ Drive shank: BT50
◎ Other handles: Supported
◎ Peak speed: 6000RPM
◎ Spindle steering: CW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D85
◎ Clamping range: D1-D13
◎ Tapping range: M5-M10
◎ Peak torque: 30. Nm
◎ Milling head weight: 13.5 kg
◎ Inventory: standing stock
◎ Non-standard customization: Support
