Product Introduction:

1. The shell is made of aviation aluminum, through aging treatment, precision machining, with high rigidity, high precision, long life and other characteristics. Allow the minimum pass Phi D80
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally precision grinding and forming to achieve high stability of transmission.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter table

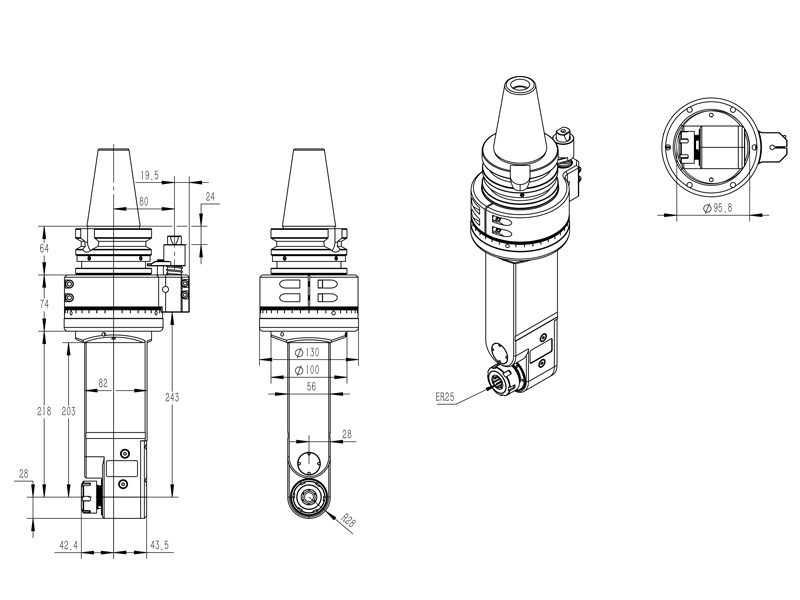

Specification Model: DK90-BT50-ER25M-200

◎ Cono shank: BT50

◎ Other Cono Shank: Can Be Used

◎ Max.RPM: 6000 rpm

Spindle steering: CW-CW

Transmission ratio: 1:1

Through diameter: D80

Clamping range: D3-D16

Tapping range: M5-M14

Peak torque: 46.Nm

Milling head weight: 13 kg

Inventory: standing stock

Non-standard customization: Supported
