Product Introduction:

1. The shell adopts QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and other characteristics. Allow the minimum pass Phi D170
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

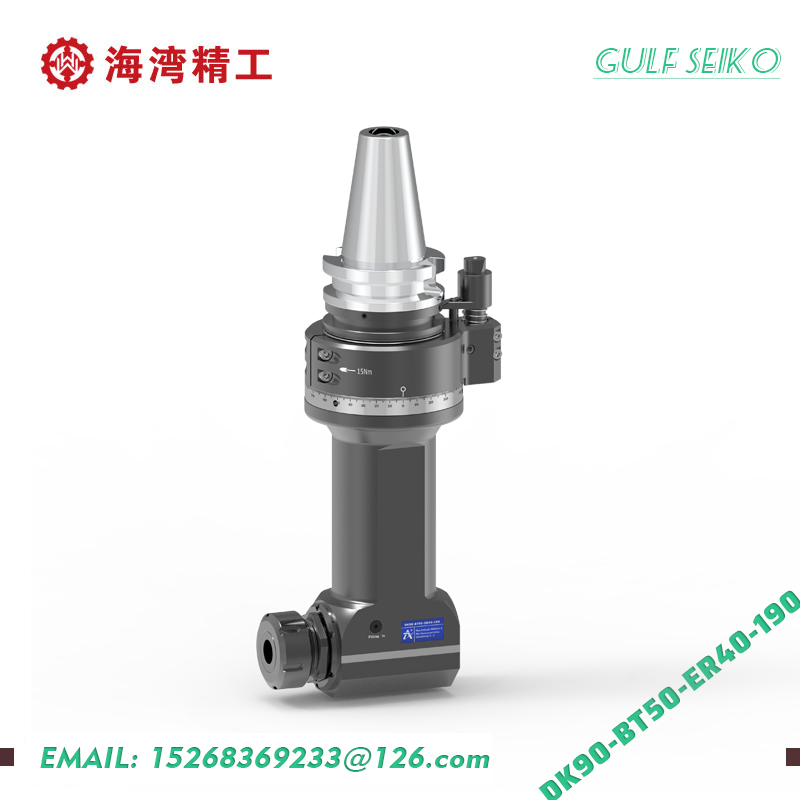

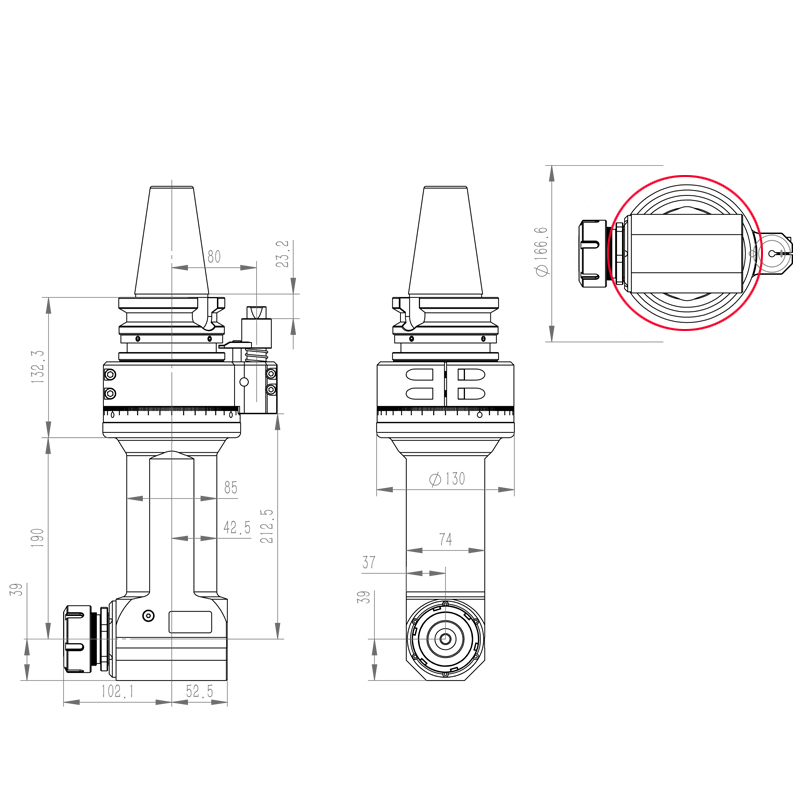

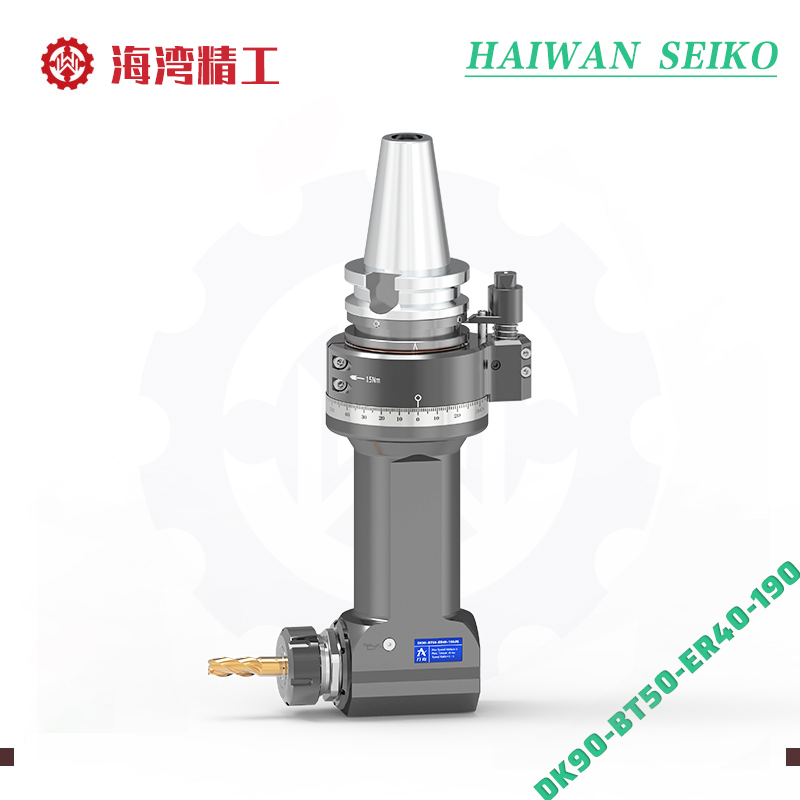

◎ Specification model: DK90-BT50-ER40-190

◎ Cono shank: BT50

◎ Other Cono Shank: Can Be Used

◎ Max.RPM: 4000 rpm

◎ Spindle steering: CW-CW

◎ Transmission ratio: 1:1

◎ Through diameter: D170

◎ Clamping range: D3-D26

◎ Tapping range: M6-M20

◎ Peak torque: 65.Nm

◎ Milling head weight: 14.15kg

◎ Inventory: standing stock

Customization: Support
