CNC side milling head is widely used in CNC lathes, such as airlines, vehicles, abrasives and other mechanical processing manufacturing industries. The application of the side milling head is very wide, and in general, it is more suitable for the production and processing of some personal small, high precision and special Angle product workpieces.

Type of CNC side milling head:

I. Classification by output status:
1, single output milling head - this type of milling head is very common, the stiffness is good, can be widely used in a variety of applications in public.
2, double output milling head - the milling head uses double output, and the double accuracy of the same ship, vertical accuracy is better, can well deal with the user in the need of high precision manual Angle, price calibration trouble, to prevent repeated deviations, improve production efficiency accuracy.
3, vertical and horizontal double milling head - the milling head can be synchronous column type and vertical production and processing, the selection of double thrust bearings and bevel gear split basic principle, calibration is more convenient and rapid, its internal structure selection of fast thrust bearings, fixed by two directions, can withstand heavy cutting.

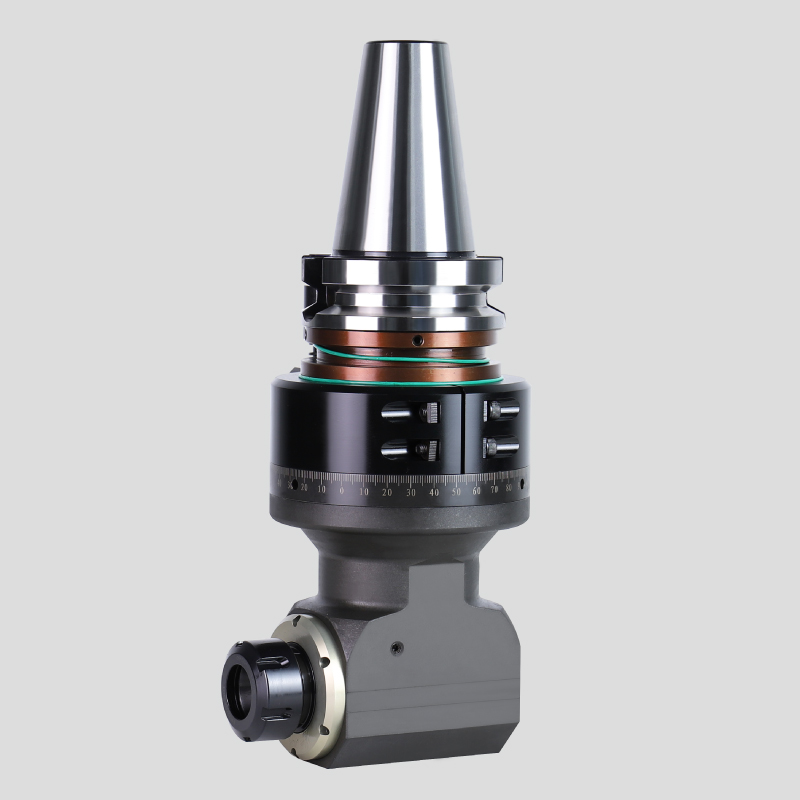

4, universal ball milling head - also known as the milling head, the milling head CNC blade rotation axis and the lathe spindle rotation axis of the Angle is adjustable, adjustable Angle range is generally 0~90 degrees, but there are some special adjustable beyond 90 degrees.

2. Classified according to production and processing status:

1, light milling head - This type of milling head is characterized by light quality (generally 5-15kg, and even 3kg light in the market), high precision, small torque, and can enter the CNC knife to carry out automatic tool. This type of milling head is precisely positioned with a positioning block, and the output is generally a spring chuck or BT30 taper shank, sometimes there are special friends who can output CAT or HSK collet clips, and there are also some special interconnecting taps or face milling cutters.
2, small and medium-sized milling head - the characteristics of this type of milling head are medium level of quality (generally 15-20kg), high accuracy, and medium level of torque. This kind of milling head also has the advantages of light and super-heavy, higher precision than super-heavy, and wider production and processing scope than light shape, so it has been favored in the market in recent years.
3, super heavy milling head - the characteristics of this type of milling head are heavy quality (generally above 50kg), general accuracy, large torque and so on.
