Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D80
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

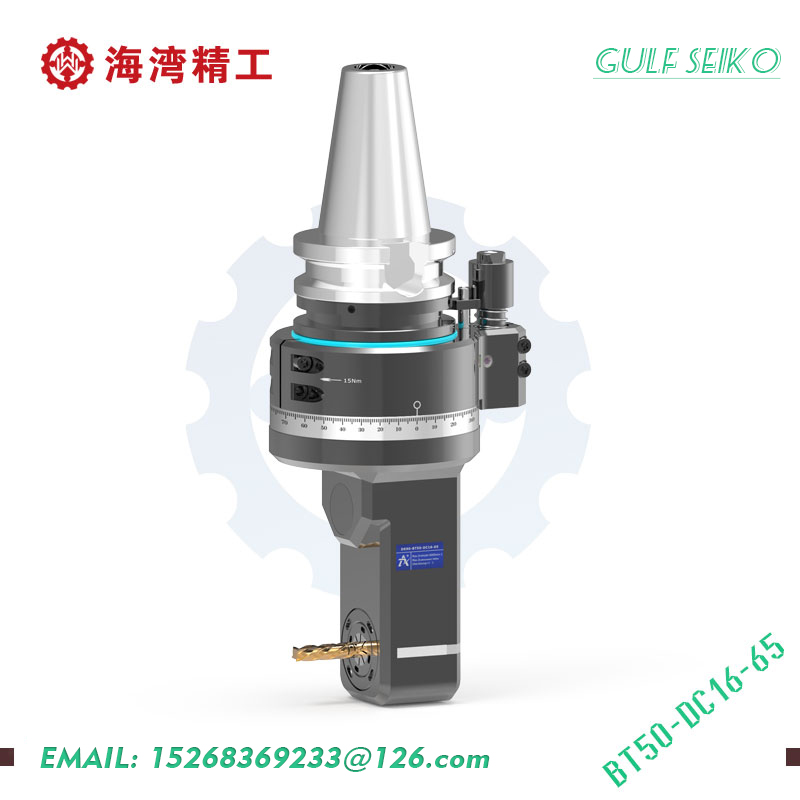

Specification Model: DK90-BT50-DC16-65
Drive shank: BT50
Other handles: Supported
Maximum speed: 4500RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Through diameter: D80
Clamping range: D1-D16
Tapping range: M6-M14
Maximum torque: 46.Nm
Milling head weight: 13.2kg
Stock: 20 days for stock
Custom ： customizable
