Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D65
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

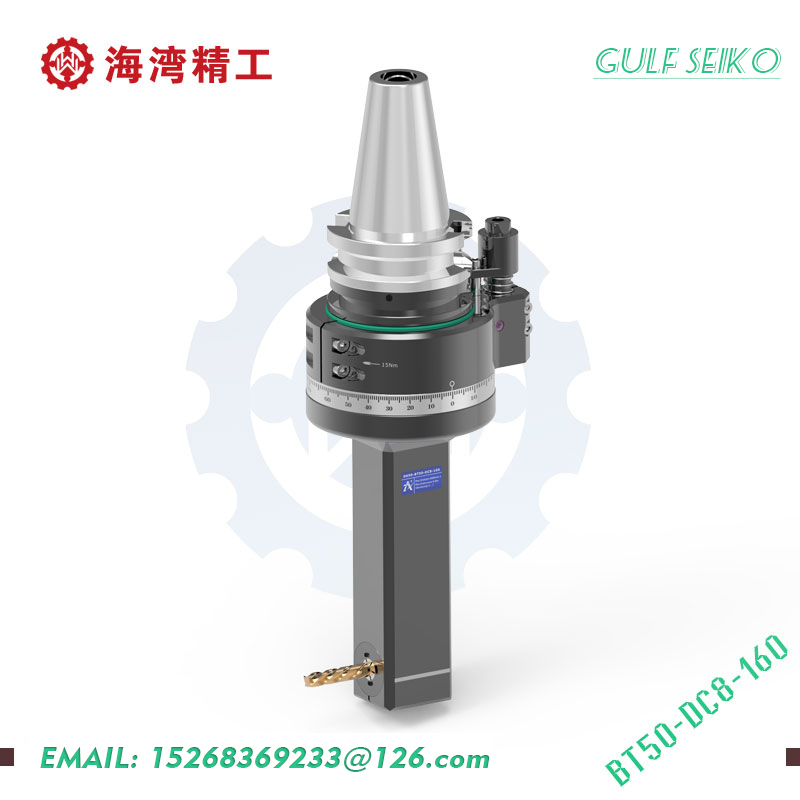

Specification Model: DK90-BT50-DC8-160
Drive shank: BT50
Other handles: Supported
Maximum speed: 6000RPM
Spindle steering: CW-CW
Transmission ratio :1:1
Through diameter :D65
Clamping range :D3-D10
Tapping range: Milling teeth
Maximum torque: 8.8Nm
Milling head weight: 12.977kg
Inventory: about 15 days
Custom ： customizable
