Product Introduction:
The shell is made of QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D140

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter

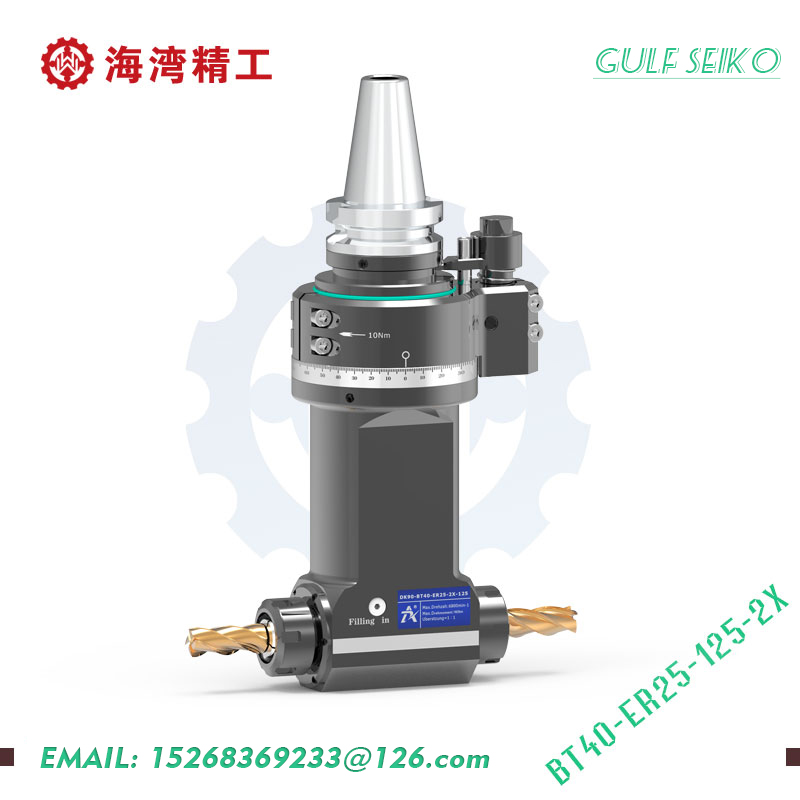

Specification Model DK90-BT40-ER25-125-2X

Cono Shank: BT40

Other Cono Shank: Can Be Used

Max.RPM : 6800 rpm

Pivot left CW-CW/ right CCW-CW
Transmission ratio 1:1
By diameter D140
Clamp range D1-D16
Tapping range M6-M14
Maximum torque 46.Nm
Milling head weight 5.85kg
Stock status Standing stock
Non-standard customization support
