Product Introduction:
The shell is made of QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D128

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

It offers you an additional option for the processing methods of your machine tool

Milling head parameter

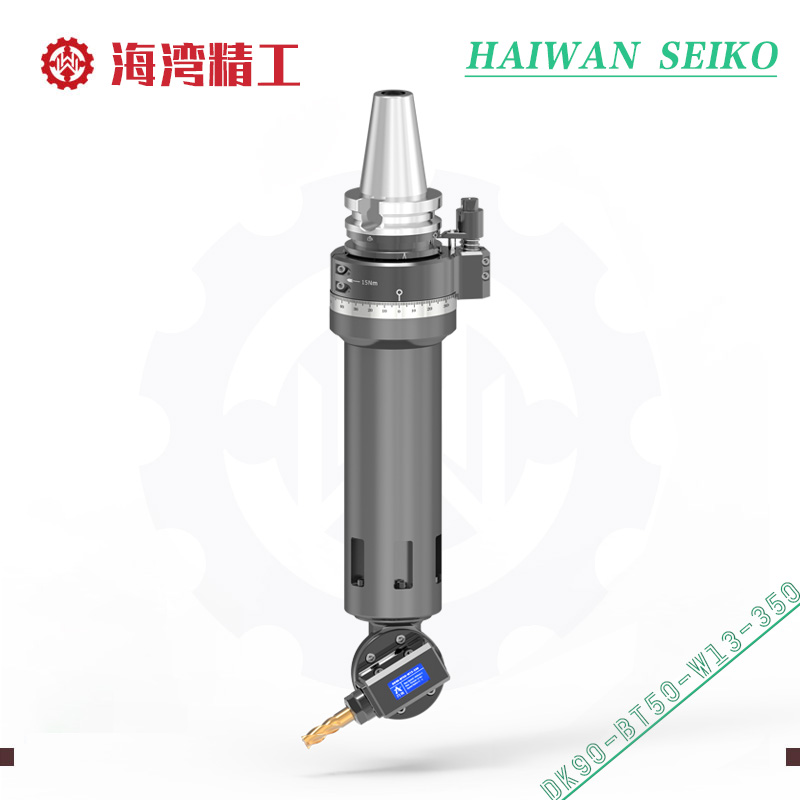

Specification Model: DK90-BT50-W13-350

Cono Shank: BT50

Other Cono Shank: Can Be Used

Max.RPM:  4500 rpm

Main shaft steering: CW-CW

Transmission ratio: 1:1

Through diameter: D128

Clamping range: D3-D13

Tapping range: M5-M10

Maximum torque: 21.Nm

Milling head weight: 18 kg

Inventory: 10 days

Non-standard customization: Supported
