Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D130
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

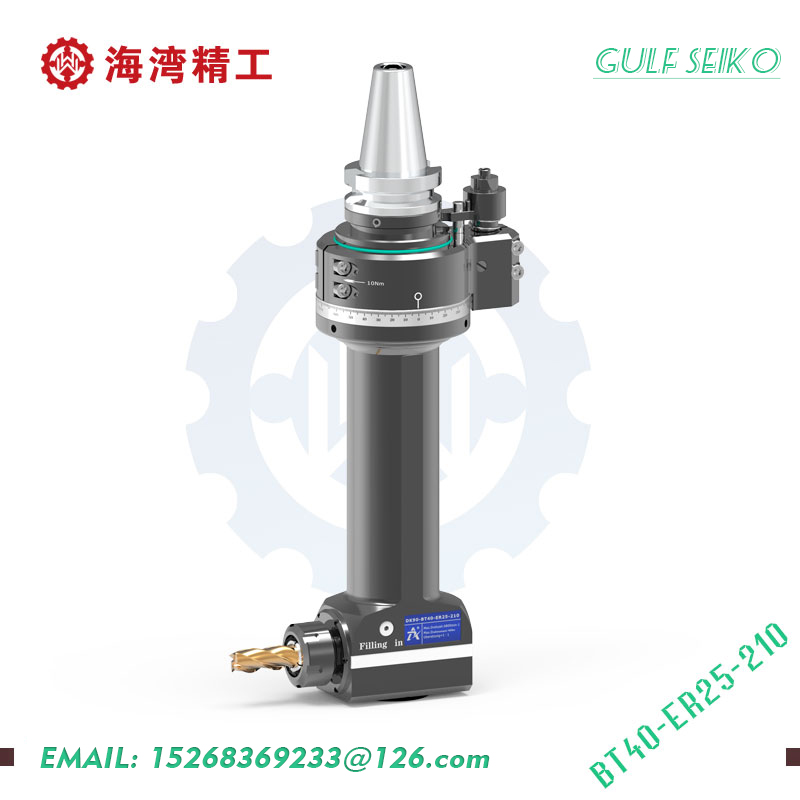

"◎ Specifications: DK90-BT40-ER25-210
◎ Drive holder: BT40
◎ Other holders: Supported
◎ Maximum speed: 6000 RPM
◎ Spindle rotation direction: CW-CW
◎ Transmission ratio: 1:1
◎ Pass-through diameter: D130
◎ Clamping range: D1-D16
◎ Thread cutting range: M6-M14
◎ Maximum torque: 46 Nm
◎ Milling head weight：8.528kg
◎ Stock availability：Regular stock
◎ Customization available：Supported"
