Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D85/D123
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.

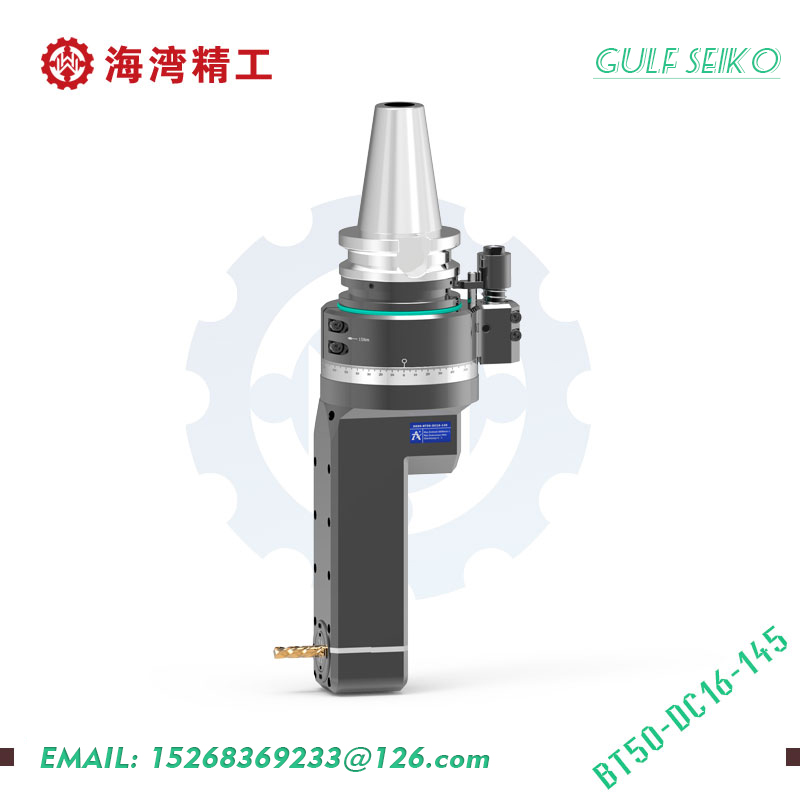

Milling head parameter
Specification Model: DK90-BT50-DC16-145
Driver shank: HSK100A/BT/NT/SK/CAT50
Other handles: Supported
Maximum speed: 4500RPM
Spindle steering: CW-CW
Transmission ratio :1:1
Through diameter: D85/123
Clamping range: D1-D16
Tapping range: M6-M14
Maximum torque: 46.Nm
Milling head weight: 17.307 kg
Inventory: Delivery time 15 working days
Custom ： customizable
