    DK90-BT50-DC7-52

    USD: $ Consultation / Piece (FOB Price)
    Release date：2024-02-02
    Inquiry：1202
    Model：BT50|Type：Standard
    The Angle head is adapted to the range of the knife handle:
    Adapt the range of the knife handle: Compatibility/BT/CAPTO/NT/HSK/SK/CAT
    Download: PDF | ZIP
    Details

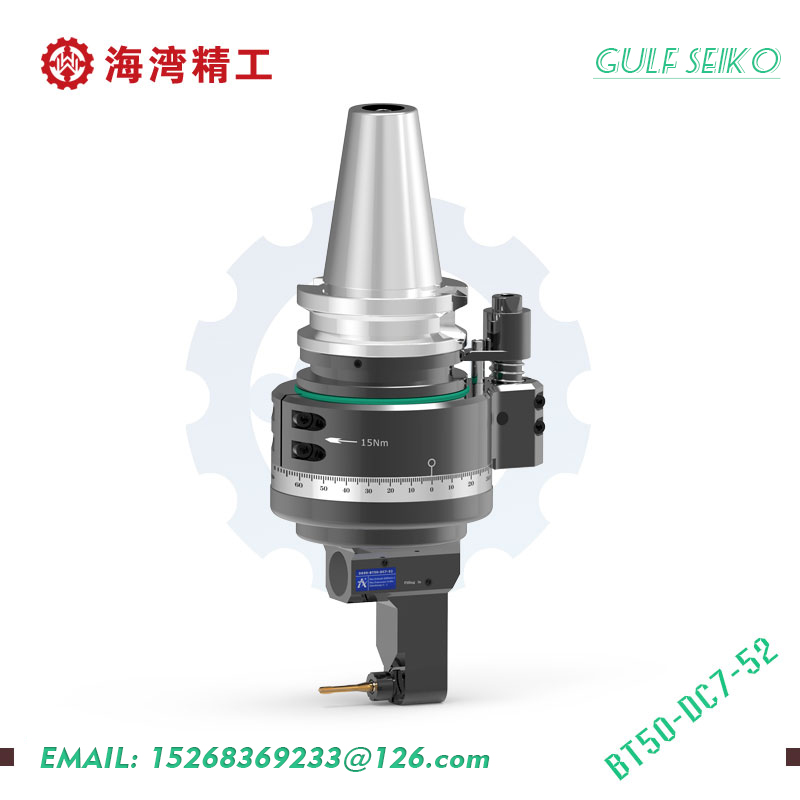

    bt50-dc7-52 angle heads

    Milling head parameter

    Specification Model: DK90-BT50-DC7-52

    Driver handle: CAT50

    Other handles: Supported

    Maximum speed: 6000RPM

    Spindle steering: CW-CW

    Transmission ratio: 1:1

    Through diameter: D50

    Clamping range: D1-D7

    Tapping range: Milling teeth

    Maximum torque: 10.8Nm

    Milling head weight: 10.992 kg

    Inventory: standing stock

    Non-standard customization: customize
