Product Introduction:
The
shell is made of aviation aluminum, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D155
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

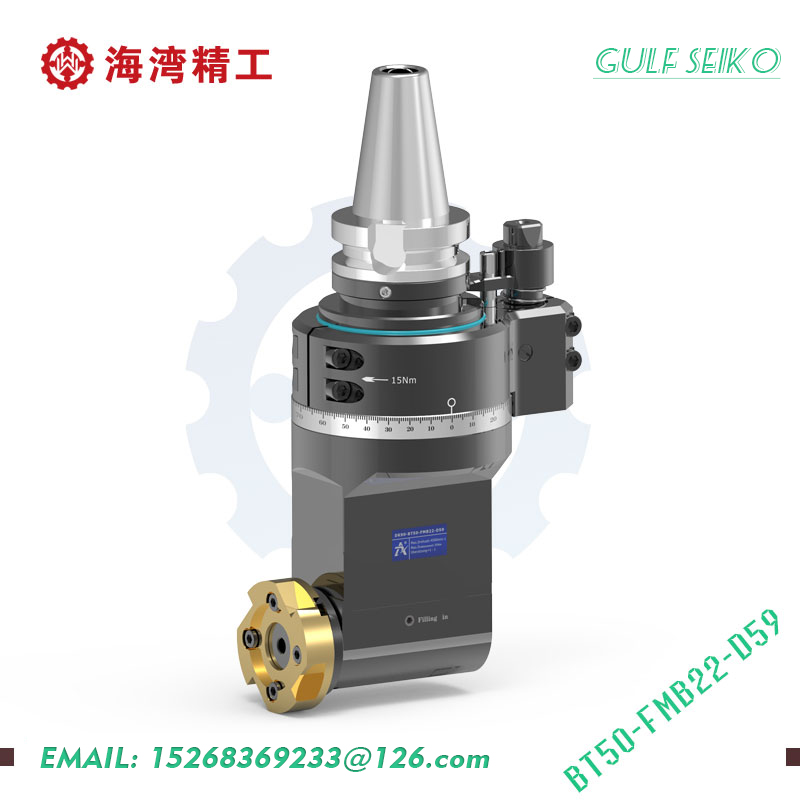

Specification Model: DK90-BT50-FMB22-D59
Drive shank: BT50
Other handles: Supported
Maximum speed: 5000RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Pass diameter: D155
Clamping range: D22
Tapping range: /
Maximum torque: 35.Nm
Milling head weight: 14.5kg
Inventory: standing stock
Non-standard customization: Supported
