Product Introduction:
The
shell is made of QT500-7, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D155
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.
Milling head parameter

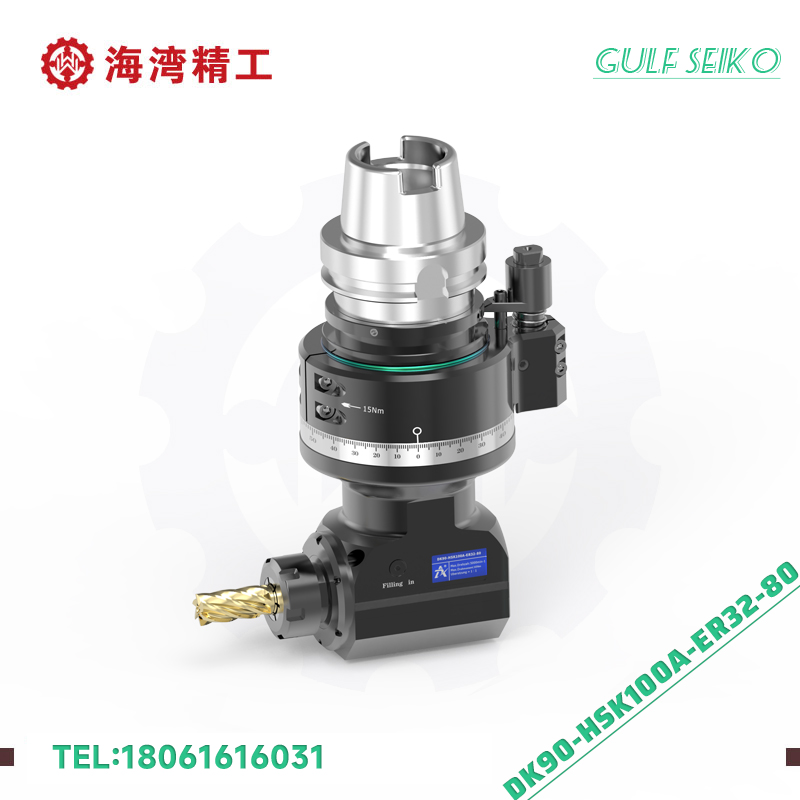

Specification Model: DK90-HSK100A-ER32-80
Drive shank: HSK100A
Other handles: Supported
Maximum speed: 5000RPM
Spindle steering: CW-CW
Transmission ratio: 1:1
Pass diameter: D155
Clamping range: D1-D20
Tapping range: M6-M16
Maximum torque: 65.Nm
Milling head weight: 12.643 kg
Inventory: standing stock
Non-standard customization: Supported
