Product Introduction:
1. The shell adopts QT500-7 through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow minimum pass Phi 155
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

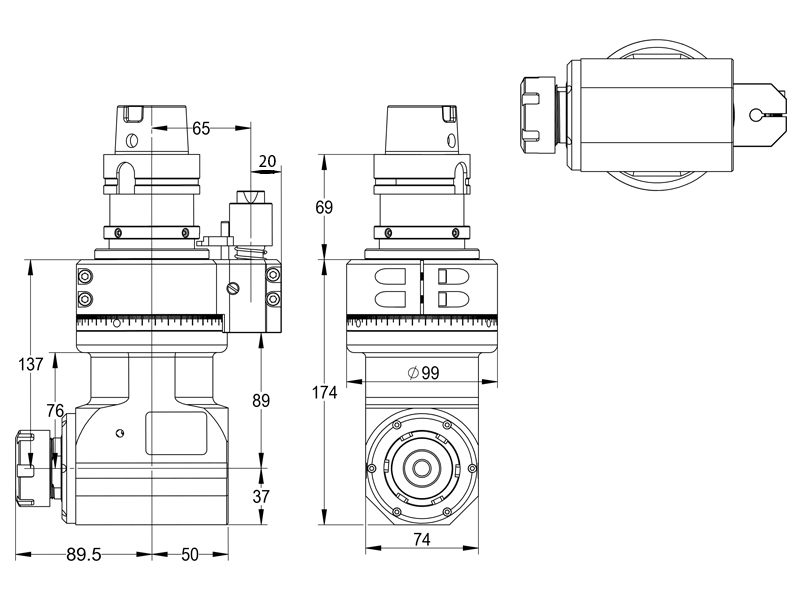

Milling head parameter
◎ Specification model: DK90-HSK63A-ER32-80
◎ Driver handle: HSK63A
◎ Other handles: Supported
◎ Peak speed: 6000RPM
◎ Spindle steering: CW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D155
◎ Clamping range: D1-D20
◎ Tapping range: M6-M16
◎ Peak torque: 65Nm
◎ Milling head weight: 6.753kg
◎ Inventory: standing stock
◎ Non-standard customization: Support
