ML-A60 gantry side milling head

USD: $ Consultation / Piece (FOB Price)
Release date：2025-04-12
Inquiry：1245
Model：BT50|Type：
Download: PDF ZIP |
Compatible with the following tool holders:
Adapt the range of the shank handle: Compatibility/BT/CAPTO/NT/HSK/SK/CAT
Details

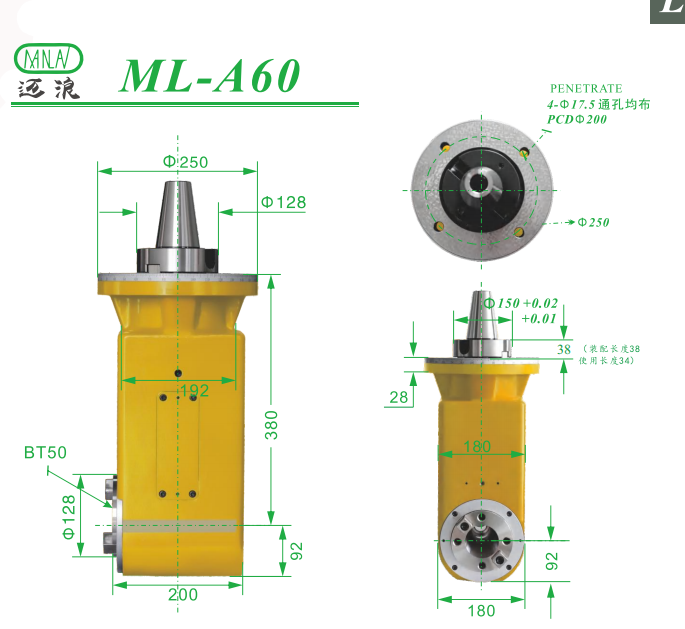

ML-A60 gantry side milling head

◎ Specification model: ML-A60

◎ Cono Shank: BT50

◎ Output handle: BT50

◎ Peak speed: 2000RPM

◎ Spindle steering: CW-CW

◎ Transmission ratio: 1:1

◎ Through diameter: D200

◎ Clamping range: D128

◎ Peak torque: 1000.Nm

◎ Milling head weight: 105 kg

◎ Inventory: standing stock

◎ Non-standard customization: Support

Products are widely used in gantry milling machine, vertical milling machine, CNC gantry milling machine. Suitable for shipbuilding, metallurgy, petrochemical, mining machinery, power energy, construction machinery, heavy machinery and other large and heavy processing fields.
