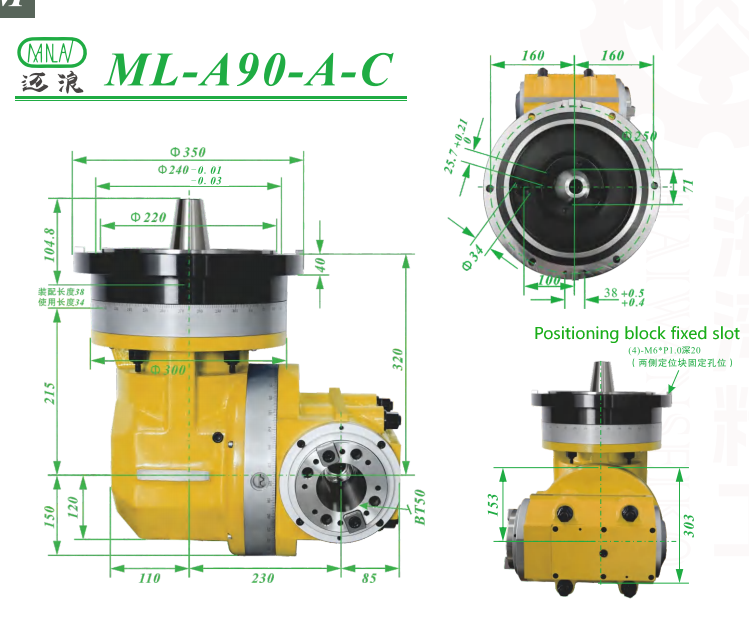

◎ Specification model: ML-A90-A-C
◎ Drive shank: BT50
◎ Output handle: BT50
◎ Peak speed: 3000RPM
◎ Spindle steering: CW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D200
◎ Clamping range: D128.5
◎ Peak torque: 1000.Nm
◎ Milling head weight: 135 kg
◎ Inventory: standing stock
◎ Non-standard customization: Support
Products are widely used in gantry milling machine, vertical milling machine, CNC gantry milling machine. Suitable for shipbuilding, metallurgy, petrochemical, mining machinery, power energy, construction machinery, heavy machinery and other large and heavy processing fields.
