Product Introduction:
The shell is made of aviation aluminum, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D155

The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.

Gear wheel bearings are imported to ensure the transmission of high torque, low noise.

Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

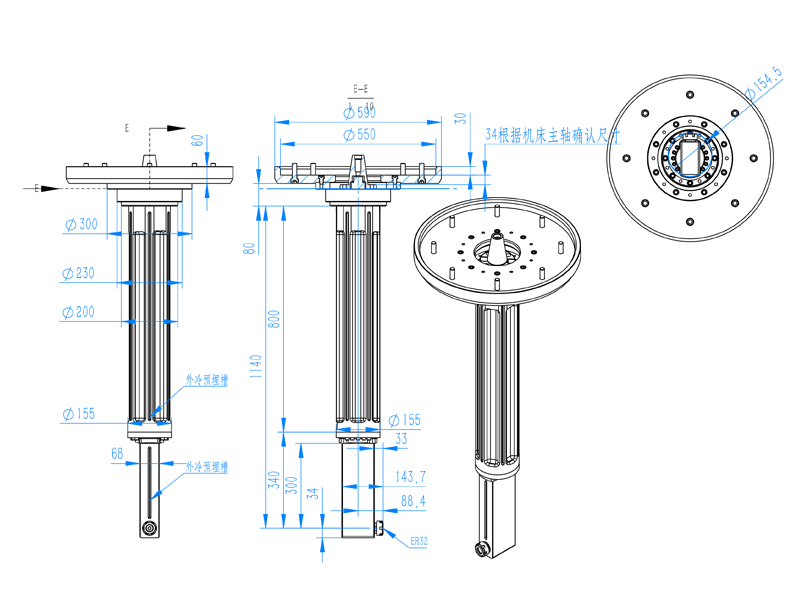

◎ Specification model: DK90-BT50-ER32-1140

Cono Shank: BT50

Other Cono Shank: Can Be Used

Max.RPM : 2500 rpm

◎ Spindle steering: CW-CW

◎ Transmission ratio: 1 : 1

◎ Through diameter: D155

◎ Clamping range: D3-D20

◎ Tapping range:  M6-M16

◎ Maximum torque: 45.Nm

◎ WT: 140 kg

◎ Inventory: /

◎ Non-standard customization: Customizable
