Product Introduction:
1. The shell adopts 40Cr, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. The minimum allowed pass Phi D155
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

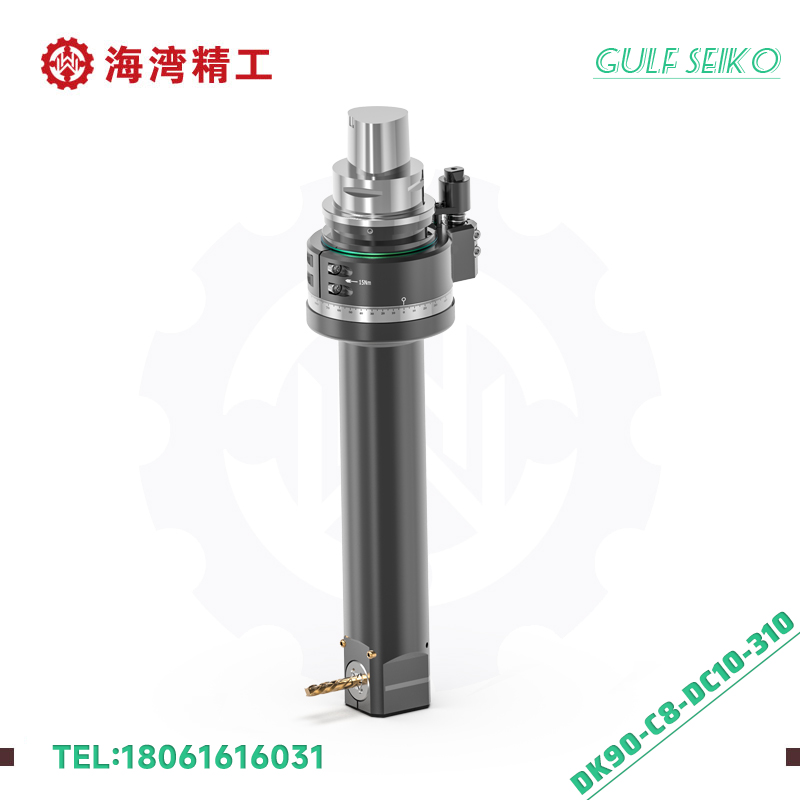

◎ Specification model: DK90-C8-DC10-310
◎ Other handles: Supported
◎ Peak speed: 5000RPM
◎ Spindle steering: CCW-CW
◎ Transmission ratio: 1:1
◎ Through diameter: D75
◎ Clamping range: D4-D10
◎ Tapping range: M5-M8
◎ Peak torque: 23.Nm
◎ Milling head weight: 17kg
◎ Inventory: Custom models
◎ Non-standard customization: Support
