    BT50-Z10-L80-H150

    USD: $ Consultation / Piece (FOB Price)
    Release date：2024-01-31
    Inquiry：1259
    Model：BT50|Type：Standard
    Download: PDF | ZIP
    v
    Details

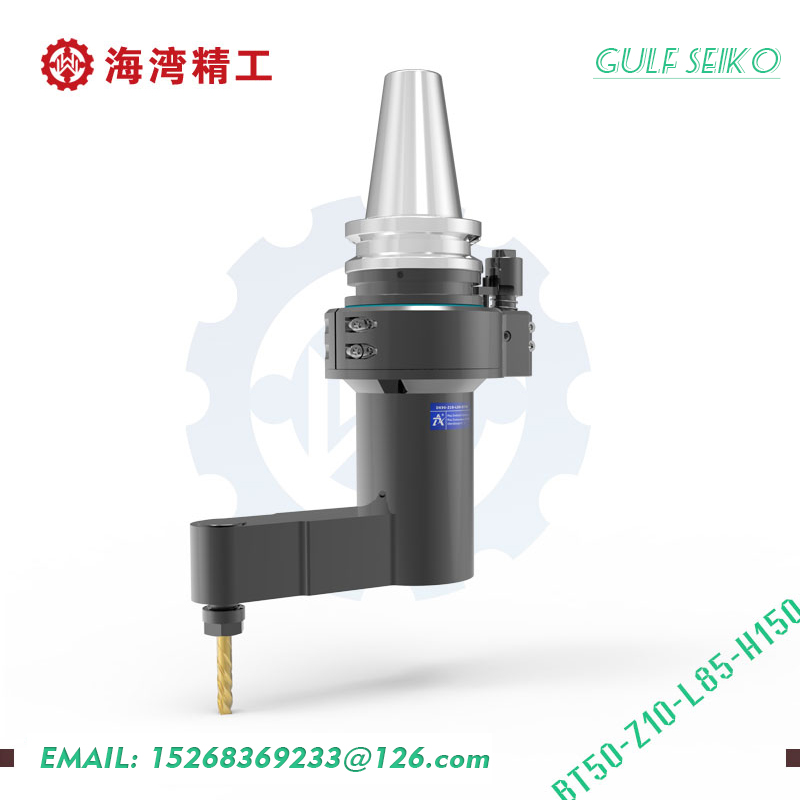

       BT50-Z10-L85-H150 integrated transmission structure. Using Japanese precision gear, smooth transmission.

    The contact oil seal has excellent dustproof and waterproof performance and long service life. Ensure the normal use of products in all kinds of harsh environments.

    Forward input forward output 1:1 drive is suitable for drilling, tapping, mold engraving, front and back milling

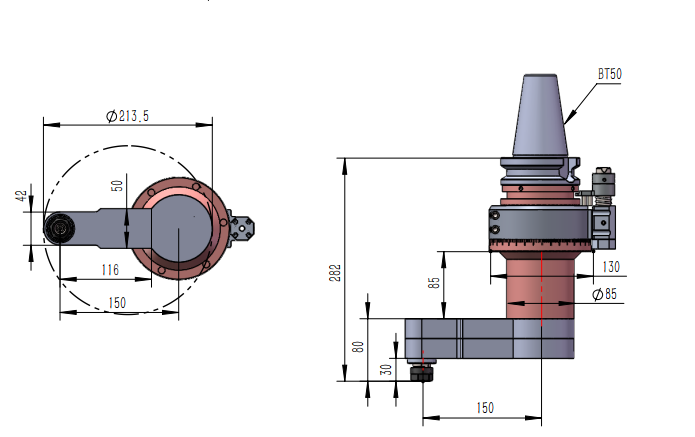

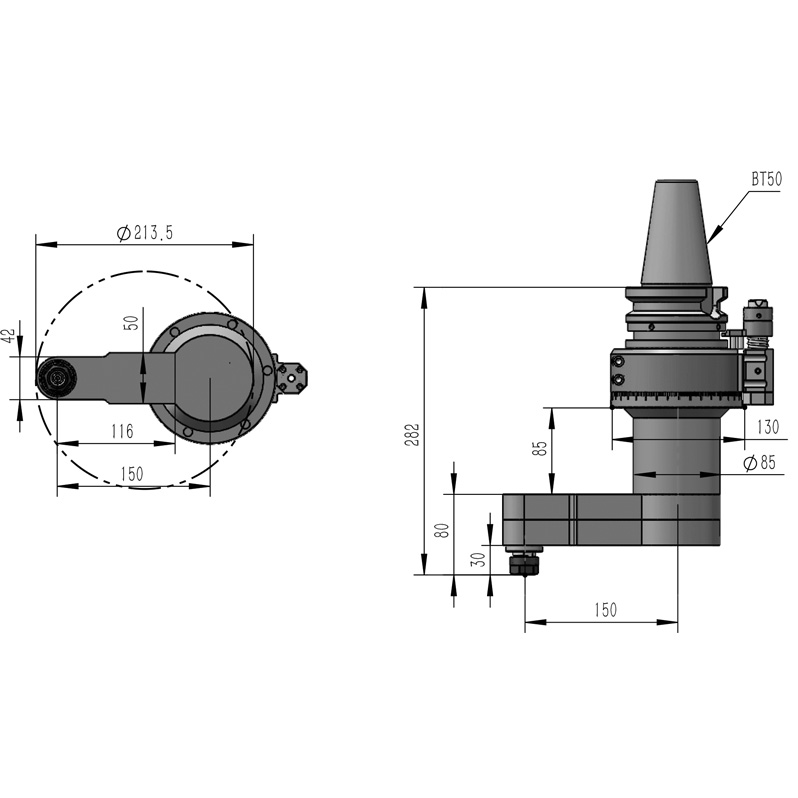

    Minimum passing diameter: 213.5MM

    Torque: 22Nm

    Gear ratio: 1:1

    Maximum speed: 5500rpm

    Milling head weight: 14kg

    Maximum clamping diameter: 10mm

    Drilling: 14mm

    Tap: M10

    BT50-Z10-L80-H150
