Product Introduction:
The
shell is made of 40Cr, through aging treatment, precision
machining, with high rigidity, high precision, long life and so on.
Allow the minimum pass Phi D75
The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground and formed to achieve high transmission stability.
Gear wheel bearings are imported to ensure the transmission of high torque, low noise.
Input
and output forms are diverse and flexible, not limited to BT or ER
interface, can meet all kinds of precision machining equipment, can be
used for milling, drilling, tapping, grinding and other processes of
processing.
Milling head parameter

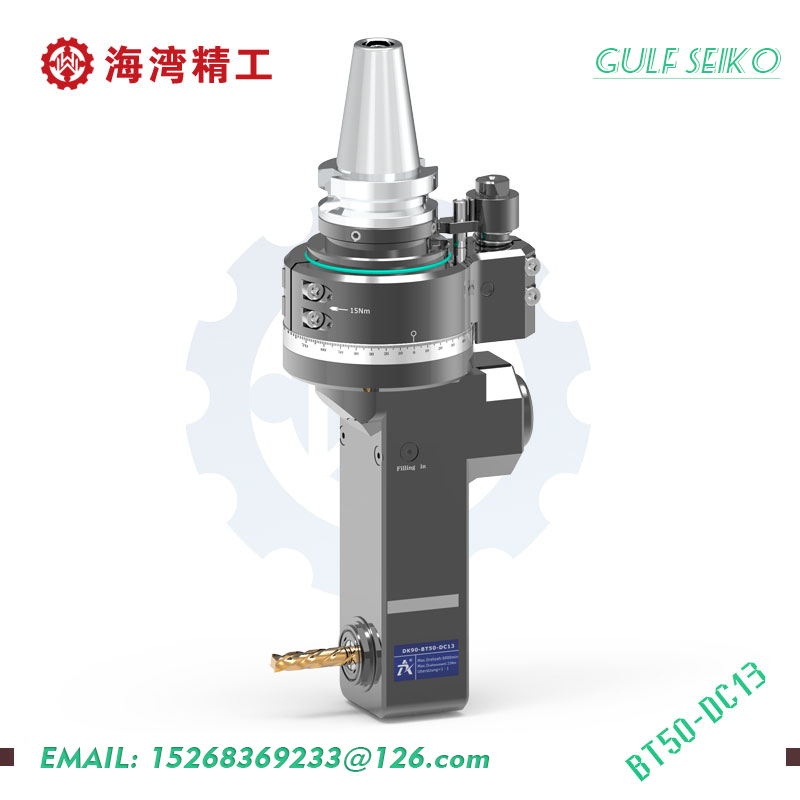

Specification Model: DK90-BT50-DC13
Drive shank: BT50
Other shank: support
Maximum speed: 5000RPM
Pivot to: CW-CW
Transmission ratio: 1:1
By diameter: D75
Clamp range: D1-D13
Tapping range milling teeth
Maximum torque: 30.Nm
Milling head weight: 14.5kg
Custom ： customizable
