Product Introduction:

1. The shell adopts QT500-7, through aging treatment, precision machining, with high rigidity, high precision, long life and so on. Allow the minimum pass Phi D67
2. The main drive shaft is made of special alloy material, processed by strict heat treatment process, and finally finely ground to achieve high transmission stability.
3. Gear bearings are imported, ensuring the transmission of high torque, low noise.
4. Input and output forms are diverse and flexible, not limited to BT or ER interface, can meet all kinds of precision machining equipment, can be used for milling, drilling, tapping, grinding and other processes of processing.

Milling head parameter table

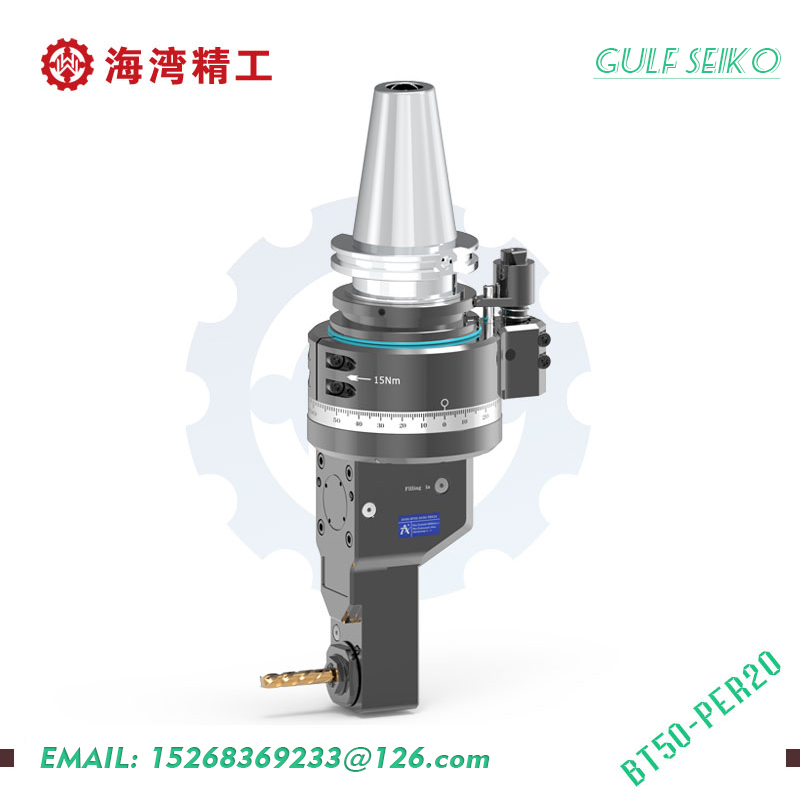

Specification Model: DK90-BT50-PER20

◎ Cono shank: BT50

◎ Other Cono Shank: Can Be Used

◎ Max.RPM: 6000 rpm

Spindle steering: CW-CW

Transmission ratio: 1:1

Through diameter: D67

Clamping range: D1-D13

Tapping range: M6-M12

Peak torque: 35.Nm

Milling head weight: 15.6kg

Inventory: standing stock

Customization: Supported
